GJSFJBV Duplex Armored Fiber Optic Cable 2 Core For LAN Backbones

Contact Now

GJSFJBV Duplex Armored Fiber Optic Cable 2 Core For LAN Backbones

Minimum Order Quantity :	1-2km	Price :	Negotiable

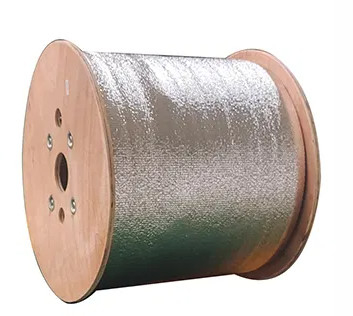

Packaging Details :	Wooden Drum	Payment Terms :	T/T, Western Union, L/C
Supply Ability :	1000 Pieces

Place of Origin:	Shenzhen, China	Brand Name:	FIBERMANIA
Certification:	ISO, UL, CE, RoHS	Model Number:	GJFJVA-D-F-P
Document:	Product Brochure PDF

Detail Information
Name:	Armored Fiber Optic Cable	Core:	2 Core
Fiber Type:	Single-mode Fiber	Cable Structure:	Round
Jacket Material:	OFNR	Applications:	Base Station
Cable Length:	Customized	Fiber Brand:	Yofc/Ofs/Corning
Operating Temperature:	-40°c~+80°c
Highlight:	GJSFJBV Armored Fiber Optic Cable , Armored Fiber Optic Cable 2 Core , Duplex Fiber Optic Cable 2 Core

Product Description

GJSFJBV Duplex Armored Indoor Optical Fiber Cable

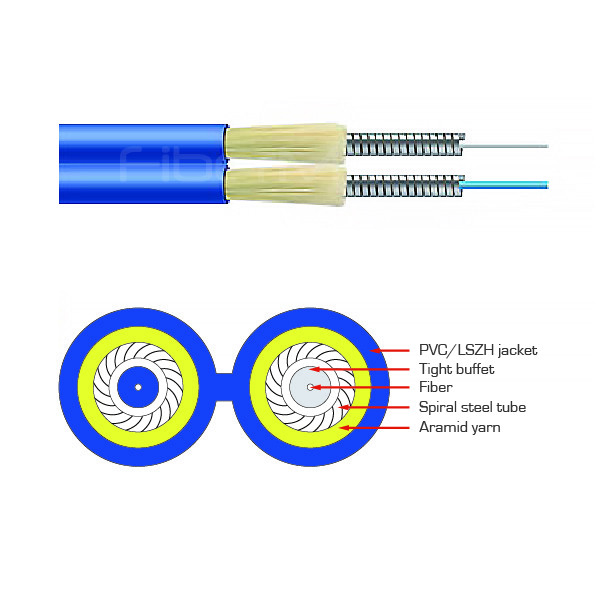

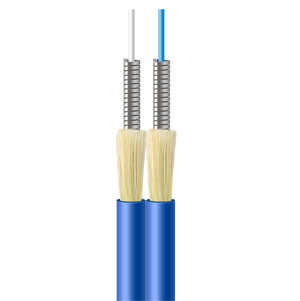

GJSFJBV Duplex Armored Indoor Optical Fiber Cable is an indoor fiber optic cable. The fiber optic cable is wrapped with a layer of flat stainless steel wire armor on the surface and reinforced with aramid yarn on the outer layer. It has excellent tensile and compressive properties and is suitable for use in indoor environments. The design of this fiber optic cable meets the demand for high-density and high-performance cabling in modern indoor environments, while providing additional protection to ensure the reliability and long lifespan of the fiber optic cable.

we manufactures a wide range of cables from 2-144fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.

GJSFJBV Duplex Armored Fiber Optic Cable 2 Core For LAN Backbones 0

Features of optical fiber cable

1. Use of tight sleeve optical fiber, easy to peel use

2. Compact fiber has good flame retardant performance

3. Aramid reinforced element enables the optical cable to have excellent tensile properties

4. Advantages of corrosion resistance, water resistance, UV protection, flame retardant and environmental protection

Application of optical fiber cable

1. All kinds of connector
2. Fiber optic pigtails, patch cords.
3. Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
4. Fiber optic equipment and instrument
5. Indoor cabling,building cabling,LAN, etc
6. Long distance, outdoor/indoor cabling, trunking,etc
7. Backbone network to the equipment in the building
8. Small installation space cabling

GJSFJBV Duplex Armored Fiber Optic Cable 2 Core For LAN Backbones 1

Specification

Cable Parameter
Item		Specification
Fiber Count		2	4
Sub-unit Jacket	Material	LSZH
	Thickness	0.4mm±0.05mm
	OD	2.0mm±0.2mm
Armored Layer	Material	SUS204
	OD	4.8mm±0.3mm	6.0mm±0.3mm
	Thickness	0.4mm±0.05mm
	Gap	0.3mm±0.10mm
Strength Member		Aramid Yarn
Outer Jacket	Material	LSZH
	Color	Black
	Thickness	0.9mm±0.1mm	1.1mm±0.1mm
	OD	7.0mm±0.3mm	7.5mm±0.1mm 8.0mm±0.1mm

Mechanical and Environmental Characteristics
Item		Specification
Fiber Count		2	4
Tension Resistance (N)	Long Term	≥ 600	≥ 800
	Short Term	≥ 1000	≥ 1200
Crush Resistance (N/10cm)		≥ 3000
Nominal Weight (kg/km)		65	85
Operating Temperature ( ºC)		-40 ~ +80
Storage Temperature ( ºC)		-40 ~ +80

Fiber Parameters
Single Mode
Item		Unit	G652D	G657A1	G657A2
Mode Field Diameter	1310nm	μm	9.1±0.4	8.8±0.4	8.8±0.4
Mode Field Diameter	1550nm	μm	10.4±0.5	9.8±0.5	9.8±0.5
Cladding Diameter		μm	125±1	125±0.7	125±0.7
Cladding Non-circularity		%	≤ 1	≤ 0.7	≤ 0.7
Core-cladding Concentricity Error		μm	≤ 0.6	≤ 0.5	≤ 0.5
Coating Diameter		μm	245±7	245±5	245±5
Coating Non-circularity		%	≤ 6.0	≤ 6.0	≤ 6.0
Cladding-coating Concentricity Error		μm	≤ 12.0	≤ 12.0	≤ 12.0
Cable Cutoff Wavelength		nm	≤ 1260	≤ 1260	≤ 1260
Attenuation Coefficient	1310nm	dB/km	≤ 0.4	≤ 0.4	≤ 0.4
Attenuation Coefficient	1550nm	dB/km	≤ 0.3	≤ 0.3	≤ 0.3

Multimode
Item		Unit	62.5/125	50/125	OM3-150	OM3-300	OM4
Core Diameter		μm	62.5±2.5	50±2.5	50±2.5	50±2.5	50±2.5
Cladding Diameter		μm	125±1.0	125±1.0	125±1.0	125±1.0	125±1.0
Core Non-circularity		%	≤ 5.0	≤ 5.0	≤ 5.0	≤ 5.0	≤ 5.0
Cladding Non-circularity		%	≤ 1.0	≤ 1.0	≤ 1.0	≤ 1.0	≤ 1.0
Core-cladding Concentricity Error		μm	≤ 1.5	≤ 1.5	≤ 1.0	≤ 1.0	≤ 1.0
Coating Diameter		μm	245±7	245±7	245±7	245±7	245±7
Coating Non-circularity		%	≤ 6.0	≤ 6.0	≤ 6.0	≤ 6.0	≤ 6.0
Cladding-coating Concentricity		μm	≤ 12.0	≤ 12.0	≤ 12.0	≤ 12.0	≤ 12.0
OFL Bandwidth	850nm	MHz·km	≥ 160	≥ 500	≥ 700	≥ 1500	≥ 3500
OFL Bandwidth	1310nm	MHz·km	≥ 500	≥ 500	≥ 500	≥ 500	≥ 500
Attenuation Coefficient	850nm	dB/km	≤ 3.0	≤ 3.0	≤ 3.0	≤ 3.0	≤ 3.0
Attenuation Coefficient	1310nm	dB/km	≤ 1.0	≤ 1.0	≤ 1.0	≤ 1.0	≤ 1.0

FAQ

Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of
five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.

Q2: Is it possible to customize our brand information on your fiber cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.

Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.

Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable, you may
consider stock the bulk cable with us for your urgent order production.

Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under
50 US dollars.

Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag and
carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even can open
the new tooling for your specific project.
