Product Description

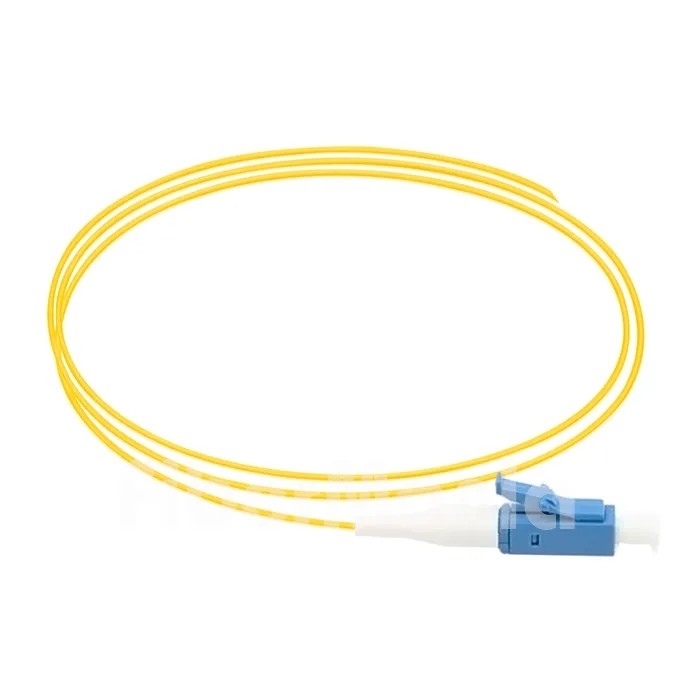

LC/UPC 0.9mm Simplex Single Mode Fiber Optic Pigtail Yellow Jacket
The fiber optic pigtail is normally a tight buffered fiber cable, this pigtail is terminated with LC/UPC connector pre terminated on one end and exposed fiber on the other. its small 0.9mm diameter makes the tail fiber easy to install and operate, always used in permanent connections between fiber patch panels and incoming cables / single blown fibers.
Our offers a wide range of pigtails, designed and manufactured for demanding network applications. It comprises of multimode and singlemode. Pigtails are pre-constructed with connectors. Connector options include small form factors such as LC, MU as well as SC, FC and ST. These are based on 900μm tight buffer cores and suitable for internal use only inside suitable Fiber Management Systems.
Applications
1. CATV, LAN, WAN
2. Test and measurement
3. Telecommunication networks
4. Premise installations
5. Video and military active device termination
Features
1. Low insertion loss and back reflection loss
2. Good exchangeability and good durability
3. Meets ISO9001, ROHS, and Bell core GR 326-core standards
4. Available in 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers
Specifications
| Characteristics |
Standard Fiber Cable Assemblies |
|
Fiber Count
|
1 |
|
Fiber Grade
|
Bend Insensitive
|
| Ferrule Materials |
Zirconia Ceramic |
| Fiber Type |
OS2 9/125 μm
|
| Testing Wavelength |
1310/1550 nm
|
|
Durability
|
1000 Times
|
|
Min. Bend Radius(Fiber Cable)
|
20/10D (Dynamic/Static)
|
|
Interchangeability
|
≤0.2 dB
|
|
Vibration
|
≤0.2 dB
|
| Operating Temp. (C) |
-20℃ ~+70℃ |
| Storage Temp. (°C) |
-40℃ ~ +85℃ |
FAQ
Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.
Q2: Is it possible to customize our brand information on your fiber cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.
Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.
Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable, you may consider stock the bulk cable with us for your urgent order production.
Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under 50 US dollars.
Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag and carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even can open the new tooling for your specific project.
