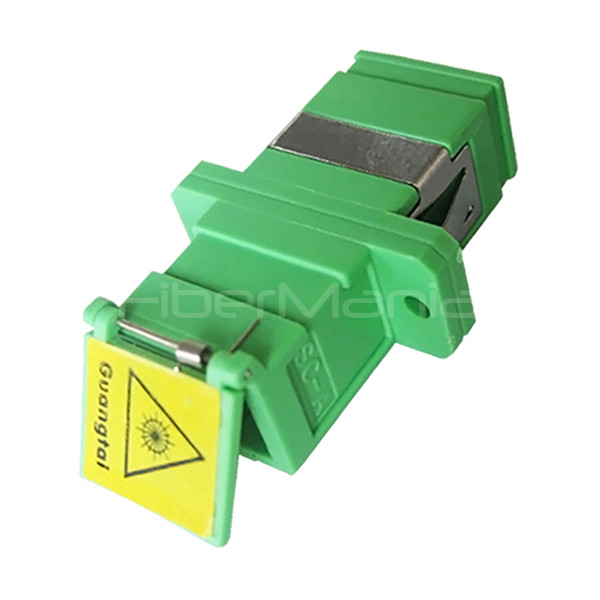

SC APC To SC APC Single Mode Simplex Plastic Fiber Optic Adapter with Dust Shutter

Minimum Order Quantity : 10 Pieces Price : Negotiable
Packaging Details : Plastic Container + Carton Delivery Time : 7-10 working days
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000PCS/Month
Place of Origin: Shenzhen, China Brand Name: FIBERMANIA
Certification: ISO, UL, CE, RoHS Model Number: SCASCASSPD
Document: Product Brochure PDF

Detail Information

Connector: SC To SC Polish Type: APC
Body Style: Simplex Fiber Mode: OS2 9/125μm
Protection Cap: Cover/Shutter Color: Green
Insertion Loss: ≤0.2dB Durability: ≤0.1dB
Flammability Rate: UL 94V-0
Highlight:

SC APC Fiber Optic Adapter

,

Plastic Fiber Optic Adapter

,

Fiber Optic Adapter with Dust Shutter

Product Description

SC APC To SC APC Single Mode Simplex Plastic Fiber Optic Adapter with Dust Shutter

SC/APC shutter adapter, sometimes also called SC/APC adapter with Swing Shutter, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines. Spring-loaded shutters prevent potential eye hazards and dirt / debris contamination when not in use.
We supply Single mode SC/APC Auto Shutter Fiber Adapters are designed for mounting in standard rectangular cut out style panels. The SC fiber optic adapters provide various types including single mode and multimode, zirconia sleeve and bronze sleeve, simplex and duplex type. We also supply the metal housing SC fiber optic adapters with Simplex and duplex type.



Features

1. Excellent changeability and directivity
2. Good Protection with Dust Cap
3. 100% Optic test (Insertion Loss)
4. High-precision Ceramic Sleeve
5. Accurate external size
6. Individually packaged


Application

1. Fiber optic transmission system
2. CATV networks
3. Local Area Networks (LANs)
4. Testing/Measurement Instruments



Mechanical​ Specifications

Operating Temperature -40 to +75º C
Storage Temperature -40 to +85º C
Temperature Cycling -40 to +75º C, 40 cycles=0.2dB change
High Temperature 70˚c for 96Hrs, <0.4dB change
Damp Heat 40º C at 93%RH for 96 Hrs, <0.4dB change
Vibration-Mated Pair 10-55Hz, 1.5mm P to P <0.2dB change
Mating Durability 500 Mating Cycles, clean every 25, <0.2dB change



FAQ

Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.

Q2: Is it possible to customize our brand information on your fiber cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.

Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.

Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable, you may consider stock the bulk cable with us for your urgent order production.

Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under 50 US dollars.

Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag and carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even can open the new tooling for your specific project.
