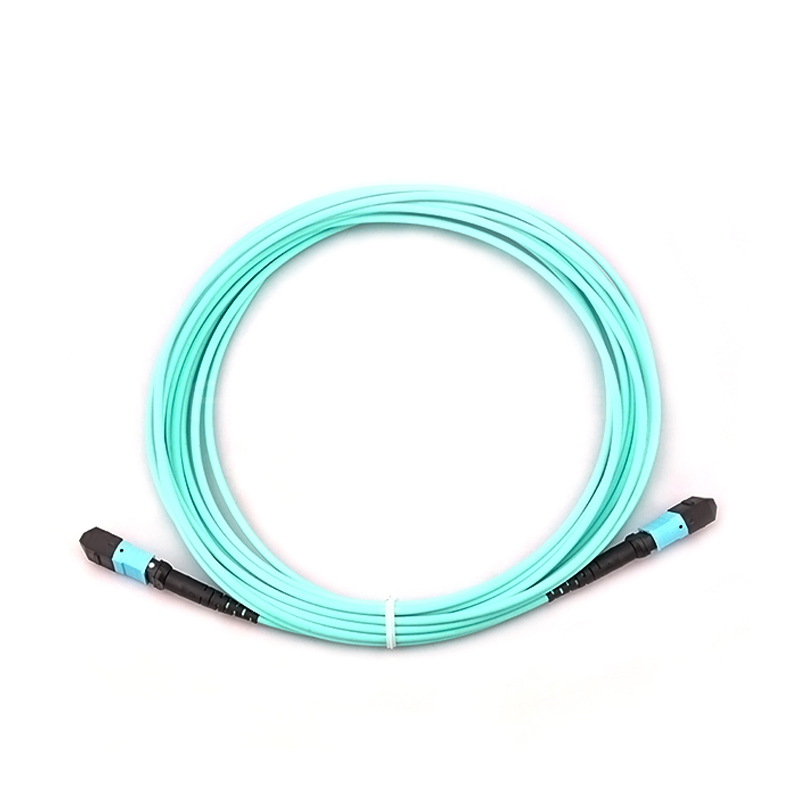

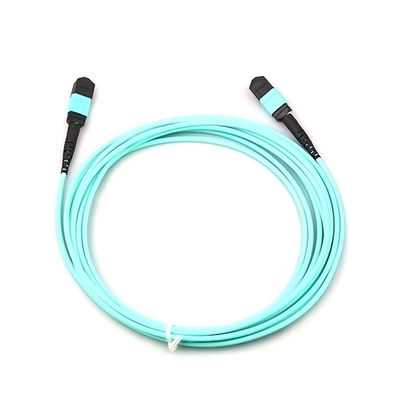

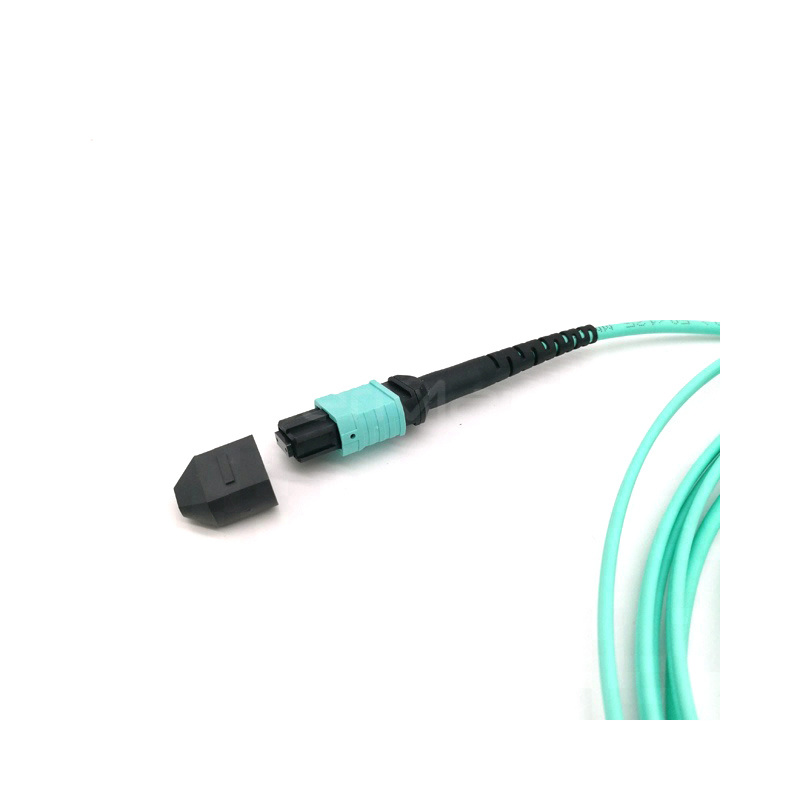

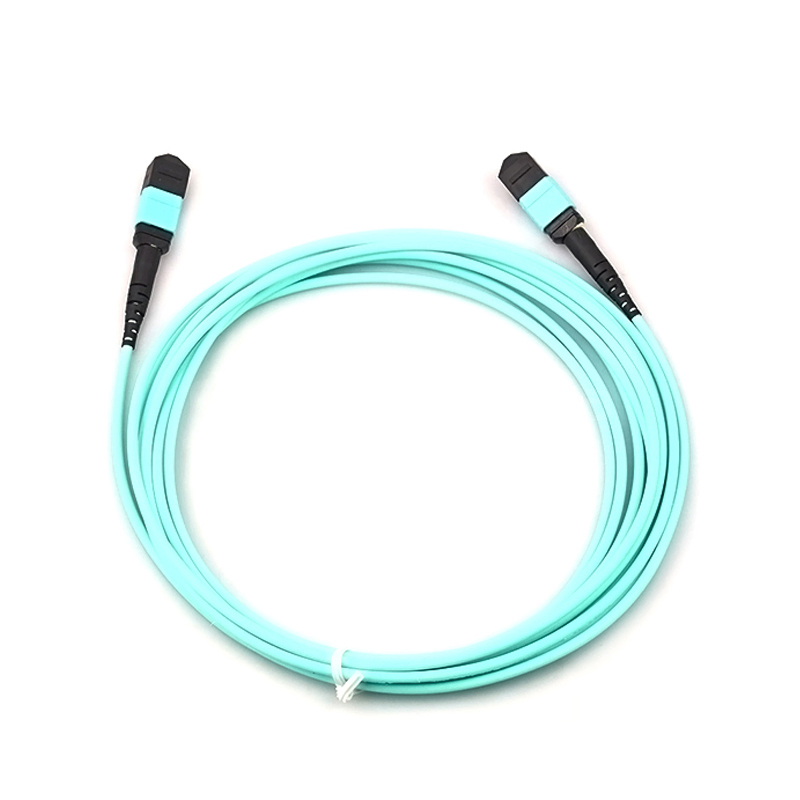

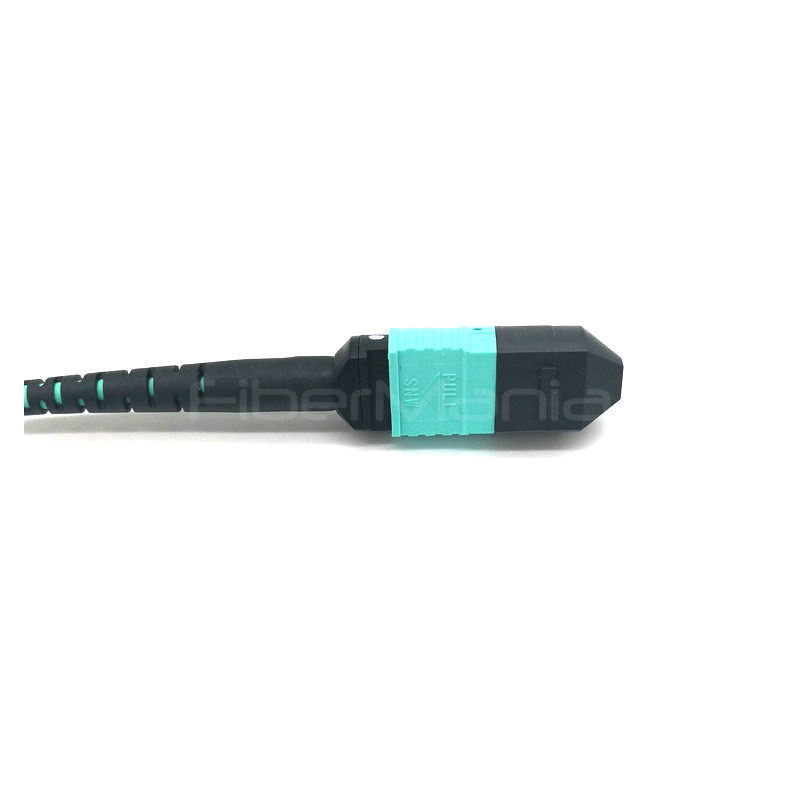

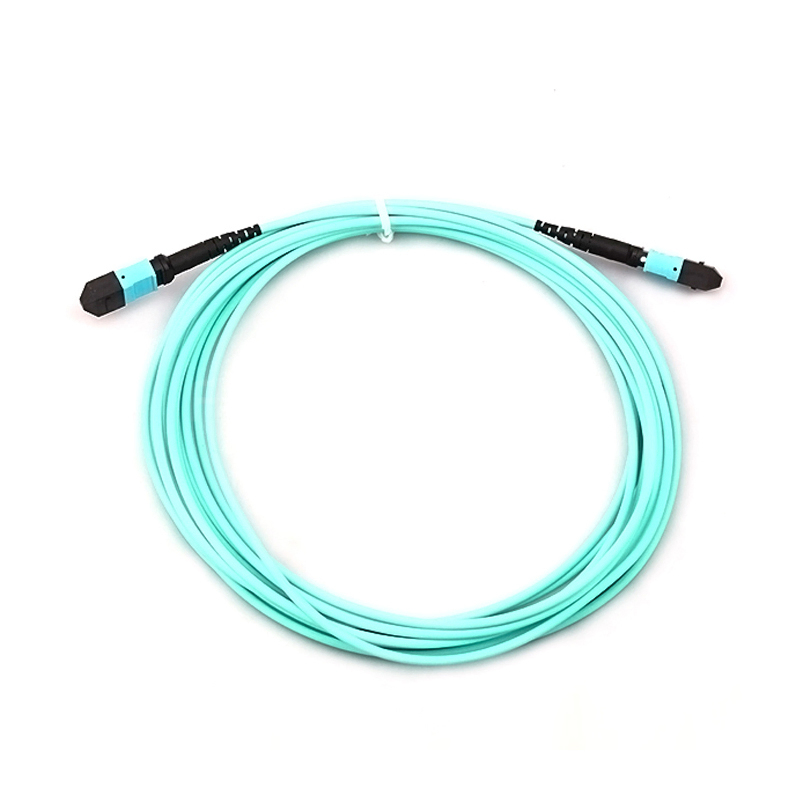

Customized 8/16/28/48/96 Cores MPO Trunk Cable with 100N<1000N Tensile Strength and 100(N/100mm)<1000(N/100mm) Lateral Pressure
Customized 8/16/28/48/96 Cores MPO Trunk Cable with 100N<1000N Tensile Strength and 100(N/100mm)<1000(N/100mm) Lateral Pressure Customized 8/16/28/48/96 Cores MPO Trunk Cable with 100N<1000N Tensile Strength and 100(N/100mm)<1000(N/100mm) Lateral Pressure Customized 8/16/28/48/96 Cores MPO Trunk Cable with 100N<1000N Tensile Strength and 100(N/100mm)<1000(N/100mm) Lateral Pressure Customized 8/16/28/48/96 Cores MPO Trunk Cable with 100N<1000N Tensile Strength and 100(N/100mm)<1000(N/100mm) Lateral Pressure Customized 8/16/28/48/96 Cores MPO Trunk Cable with 100N<1000N Tensile Strength and 100(N/100mm)<1000(N/100mm) Lateral Pressure
Contact Now

Customized 8/16/28/48/96 Cores MPO Trunk Cable with 100N<1000N Tensile Strength and 100(N/100mm)<1000(N/100mm) Lateral Pressure

Minimum Order Quantity : 10 Price : 3.8
Certification: RoHS, CE, ISO9001 Document: Product Brochure PDF

Detail Information
Connection Structure: MPO To MPO Material Shape: Round Wire
Allowed Lateral Pressure: 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength: 100N<1000N
Sheath Material: PVC/LSZH Connector Type: MPO/MTP
Fiber Mode: OM3/OM4 Fiber Count: 12 Fibers
Polarity: Type A Or B Wavelength: 850nm/1300nm
Cable Diameter: 3.0mm Insertion Loss: ≤0.6dB
Return Loss: ≥20dB Attenuation 850nm: ≤2.3dB/km
Attenuation 1300nm: ≤0.6dB/km
Highlight:

8/16/28/48/96 Cores MPO Trunk Cable

,

100N<1000N MPO Fiber Patch Cable

,

100(N/100mm)<1000(N/100mm) MTP/MPO Cable Assembly

Product Description

Customized OM3 OM4 Male Female MPO Trunk 8/16/28/48/96 Cores Fiber Patch Cable
MTP/MPO Cable Assemblies, commonly recognized as MTP® Breakout Fiber, are primarily utilized for data distribution patch panels, including plenum applications. FiberMania Cable supplies MTP® breakout cables in single-mode and multimode, employing 12, 24, 48, and 72 fibers. The MTP® fiber cable splits one 12-strand MTP® fiber optic cable into 12 individual SC cables.
Key Features
  • Versatile Fiber Options: Available in single-mode and multimode configurations
  • Multiple Fiber Counts: Choose from 12, 24, 48, or 72 fibers to suit your requirements
  • Breakout Design: Splits one 12-strand MTP® fiber optic cable into 12 individual SC cables
  • Fan-Out Styles: Available in both male and female configurations
  • Customizable Lengths: Select from various lengths and tube diameters
Applications
  • Data Distribution Patch Panels
  • High-Density Networking Environments
  • Plenum Spaces
Specifications
Connector MPO/MTP (Male/Female)
Fiber Mode SM(OS2) | MM(OM1/OM2/OM3/OM4/OM5)
Polishing Type PC | APC | PC
Insertion Loss Typical≤0.30dB Max≤0.75dB Typical≤0.15dB (Elite) Max≤0.35dB (Elite) | Typical≤0.50dB Max≤0.25dB Typical≤0.10dB (Elite) Max≤0.35dB (Elite)
Return Loss ≥50dB ≥55dB(Elite) | ≥60dB ≥65dB(Elite) | ≥35dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Fiber Count 8/12/24/48/72/96/144 Fibers
Cable Jacket PVC/OFNR/OFNP/LSZH
RoHS Compliancy Status Compliant
Quality Testing Program
Customized 8/16/28/48/96 Cores MPO Trunk Cable with 100N<1000N Tensile Strength and 100(N/100mm)<1000(N/100mm) Lateral Pressure 0
IL and RL Testing
Conduct testing on the insertion loss and return loss of cables to verify their reach and ensure stable signal transmission.
3D Interferometer Testing
Evaluate the connectors or ferrules of cables to verify that the apex offset, radius of curvature, and fiber height are within specified parameters.
Customized 8/16/28/48/96 Cores MPO Trunk Cable with 100N<1000N Tensile Strength and 100(N/100mm)<1000(N/100mm) Lateral Pressure 1 Customized 8/16/28/48/96 Cores MPO Trunk Cable with 100N<1000N Tensile Strength and 100(N/100mm)<1000(N/100mm) Lateral Pressure 2
End-Face Inspection
Examine the connector end face for any scratches, defects, or contamination to ensure the tips remain clean. This practice enhances communication quality and reliability, thereby contributing to network uptime.
Production Equipment
Customized 8/16/28/48/96 Cores MPO Trunk Cable with 100N<1000N Tensile Strength and 100(N/100mm)<1000(N/100mm) Lateral Pressure 3 Customized 8/16/28/48/96 Cores MPO Trunk Cable with 100N<1000N Tensile Strength and 100(N/100mm)<1000(N/100mm) Lateral Pressure 4 Customized 8/16/28/48/96 Cores MPO Trunk Cable with 100N<1000N Tensile Strength and 100(N/100mm)<1000(N/100mm) Lateral Pressure 5 Customized 8/16/28/48/96 Cores MPO Trunk Cable with 100N<1000N Tensile Strength and 100(N/100mm)<1000(N/100mm) Lateral Pressure 6 Customized 8/16/28/48/96 Cores MPO Trunk Cable with 100N<1000N Tensile Strength and 100(N/100mm)<1000(N/100mm) Lateral Pressure 7 Customized 8/16/28/48/96 Cores MPO Trunk Cable with 100N<1000N Tensile Strength and 100(N/100mm)<1000(N/100mm) Lateral Pressure 8
Packaging & Shipping
Customized 8/16/28/48/96 Cores MPO Trunk Cable with 100N<1000N Tensile Strength and 100(N/100mm)<1000(N/100mm) Lateral Pressure 9
Why Choose FiberMania?
Our MTP/MPO Cable Assemblies are manufactured to the highest standards, ensuring durability and exceptional performance. With a commitment to quality and customer satisfaction, FiberMania is your trusted partner for fiber optic solutions.
