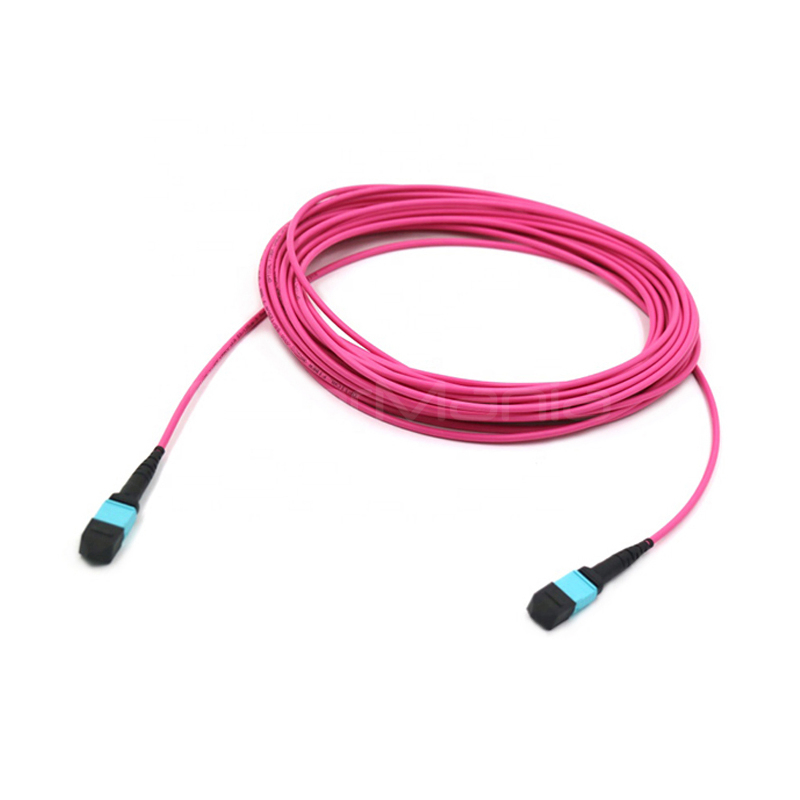

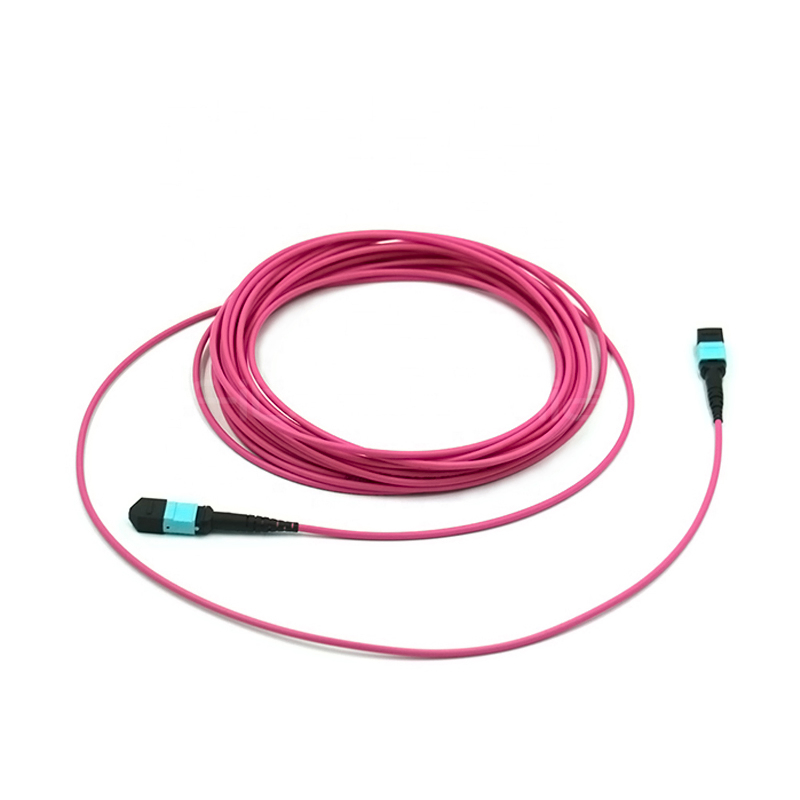

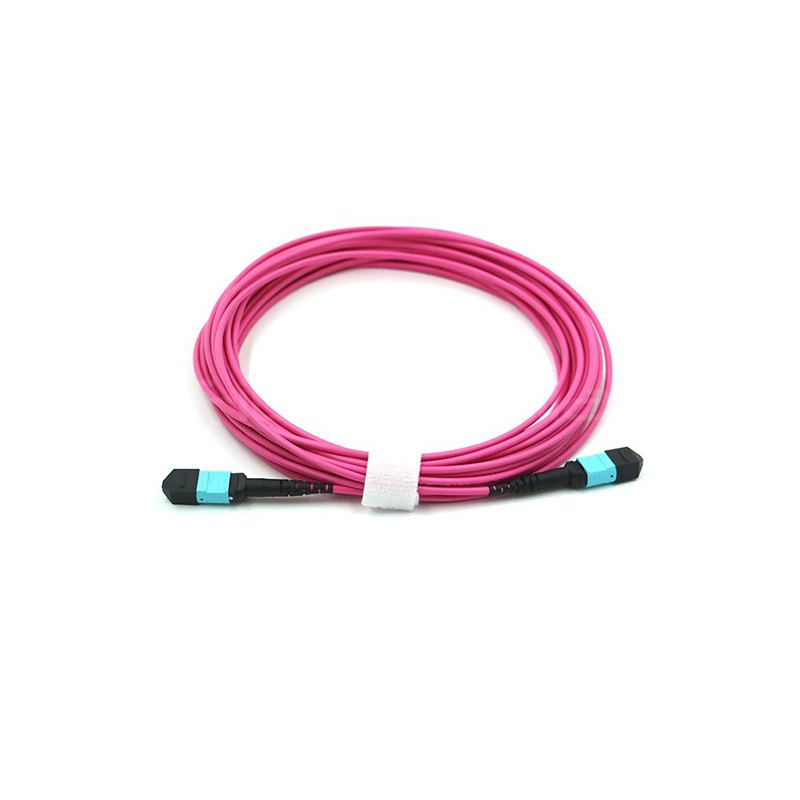

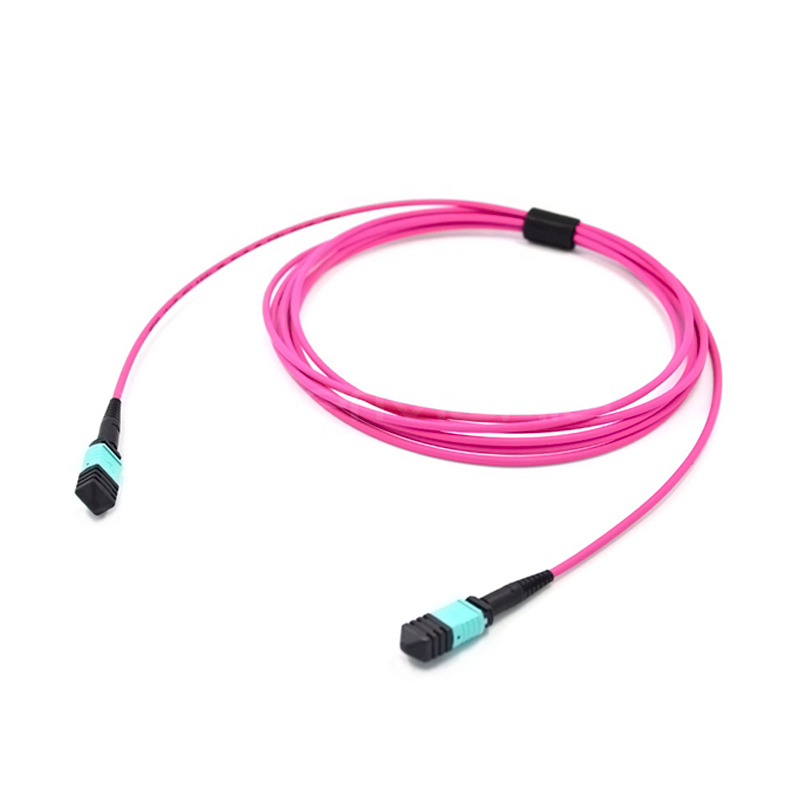

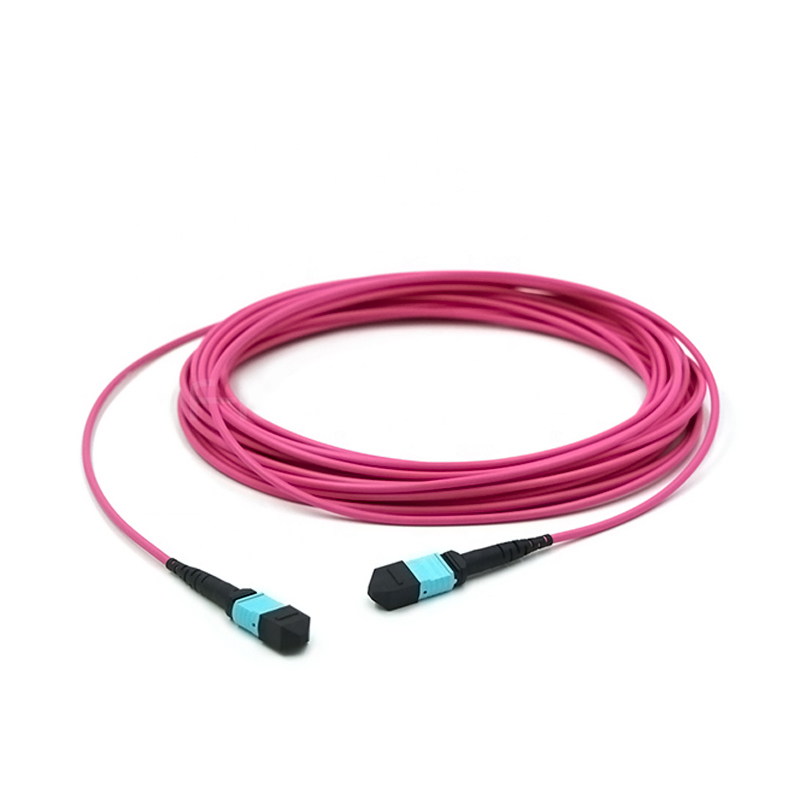

12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD
Contact Now

12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD

Minimum Order Quantity : 10 Price : 3.8
Certification: RoHS, CE, ISO9001 Document: Product Brochure PDF

Detail Information
Connection Structure: MPO To MPO Material Shape: Round Wire
Allowed Lateral Pressure: 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength: 100N<1000N
Sheath Material: PVC/LSZH Connector Type: MPO/MTP
Fiber Mode: OM4 50/125μm Fiber Count: 12 Fibers
Polarity: Type A Wavelength: 850nm/1300nm
Cable Diameter: 3.0mm Insertion Loss: ≤0.6dB
Return Loss: ≥20dB Attenuation 850nm: ≤2.3dB/km
Attenuation 1300nm: ≤0.6dB/km
Highlight:

OM4 50/125μm MPO Trunk Cable

,

850nm/1300nm Wavelength MPO Fiber Optic Patch Cord

,

3.0mm OD MPO Cable Assembly

Product Description

12core OM3 OM4 OM5 Elite MPO Trunk Cable Jumper MPO Fiber Optic Patch Cord
MTP/MPO Cable Assemblies, commonly recognized as MTP® Breakout Fiber, are primarily utilized for data distribution patch panels, including plenum applications. FiberMania Cable supplies MTP® breakout cables in single-mode and multimode, employing 12, 24, 48, and 72 fibers. The MTP® fiber cable splits one 12-strand MTP® fiber optic cable into 12 individual SC cables.
Key Features
  • Versatile Fiber Options: Available in single-mode and multimode configurations.
  • Multiple Fiber Counts: Choose from 12, 24, 48, or 72 fibers to suit your requirements.
  • Breakout Design: Each assembly splits one 12-strand MTP® fiber optic cable into 12 individual SC cables, enhancing connectivity options.
  • Fan-Out Styles: Available in both male and female configurations, ensuring compatibility with various setups.
  • Customizable Lengths: Select from a variety of lengths and tube diameters for optimal installation flexibility.
Applications
  • Data Distribution Patch Panels
  • High-Density Networking Environments
  • Plenum Spaces
Specifications
Connector MPO/MTP(Male/Female)
Fiber Mode SM(OS2) | MM(OM1/OM2/OM3/OM4/OM5)
Polishing Type PC | APC | PC
Insertion Loss Typical≤0.30dB Max≤0.75dB Typical≤0.15dB (Elite) Max≤0.35dB (Elite) | Typical≤0.50dB Max≤0.25dB Typical≤0.10dB (Elite) Max≤0.35dB (Elite)
Return Loss ≥50dB ≥55dB(Elite) | ≥60dB ≥65dB(Elite) | ≥35dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Fiber Count 8/12/24/48/72/96/144 Fibers
Cable Jacket PVC/OFNR/OFNP/LSZH
RoHS Compliancy Status Compliant
Quality Testing Program
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 0
IL and RL Testing
Conduct testing on the insertion loss and return loss of cables to verify their reach and ensure stable signal transmission.
3D Interferometer Testing
Evaluate the connectors or ferrules of cables to verify that the apex offset, radius of curvature, and fiber height are within the specified parameters, ensuring a successful connection of fiber optic lines.
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 1
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 2
End-Face Inspection
Examine the connector end face for any scratches, defects, or contamination to ensure the tips remain clean. This practice enhances communication quality and reliability, thereby contributing to network uptime.
Production Equipment
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 3
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 4
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 5
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 6
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 7
Why Choose FiberMania?
Our MTP/MPO Cable Assemblies are manufactured to the highest standards, ensuring durability and exceptional performance. With a commitment to quality and customer satisfaction, FiberMania is your trusted partner for fiber optic solutions.
