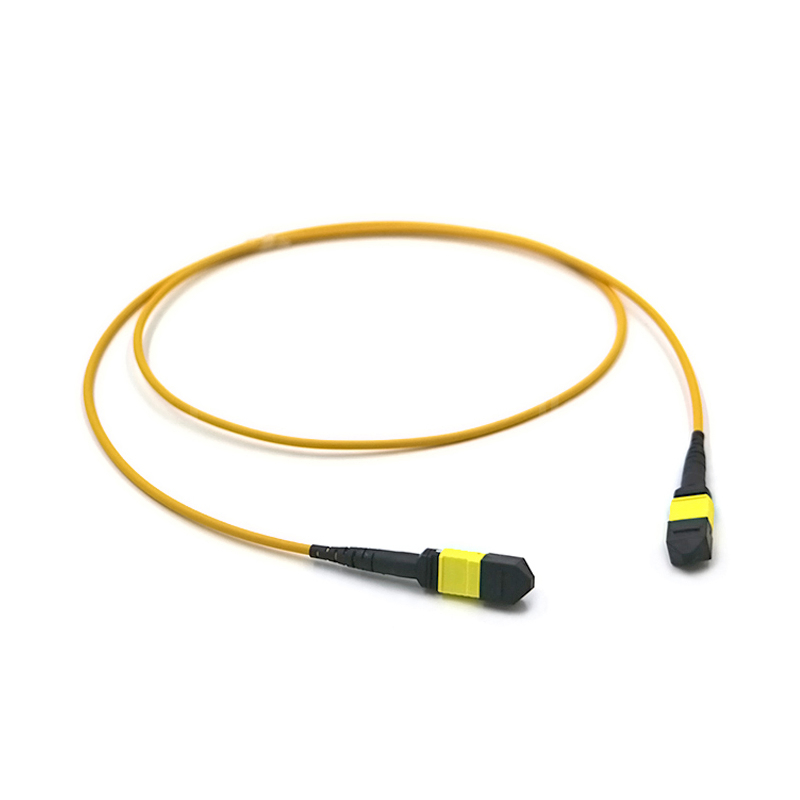

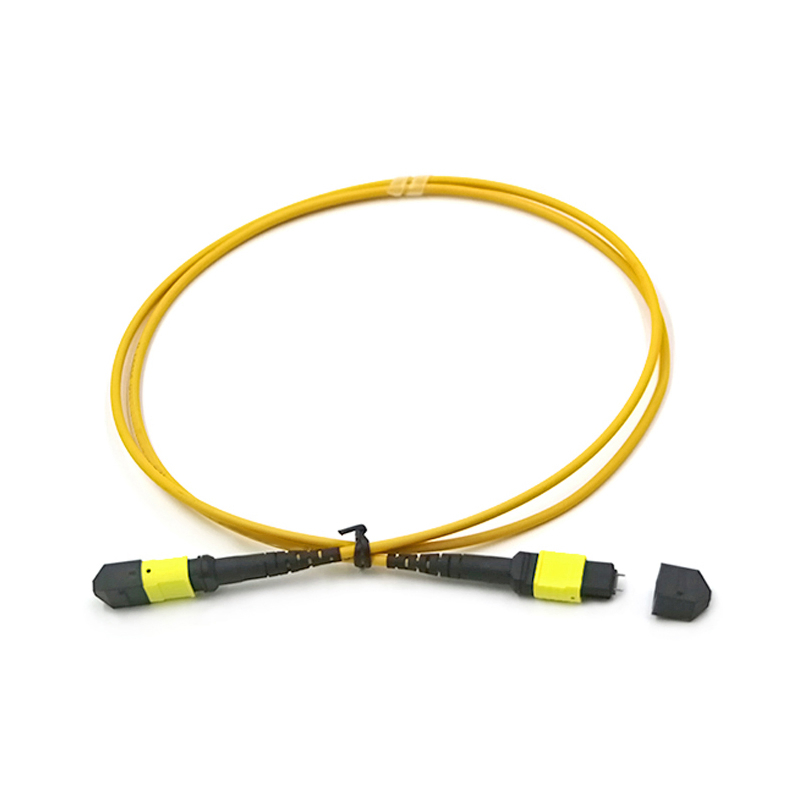

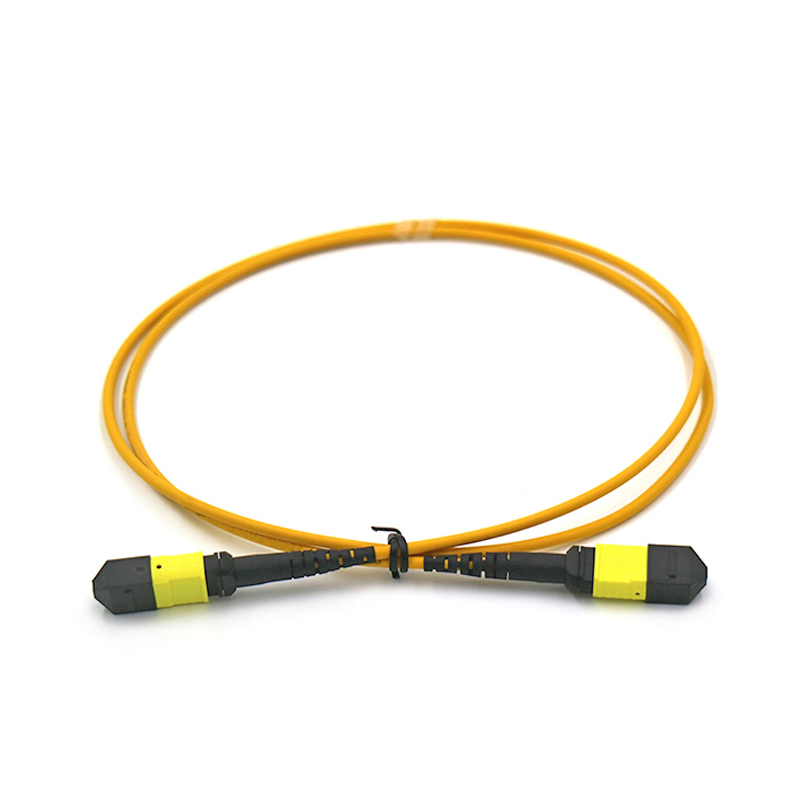

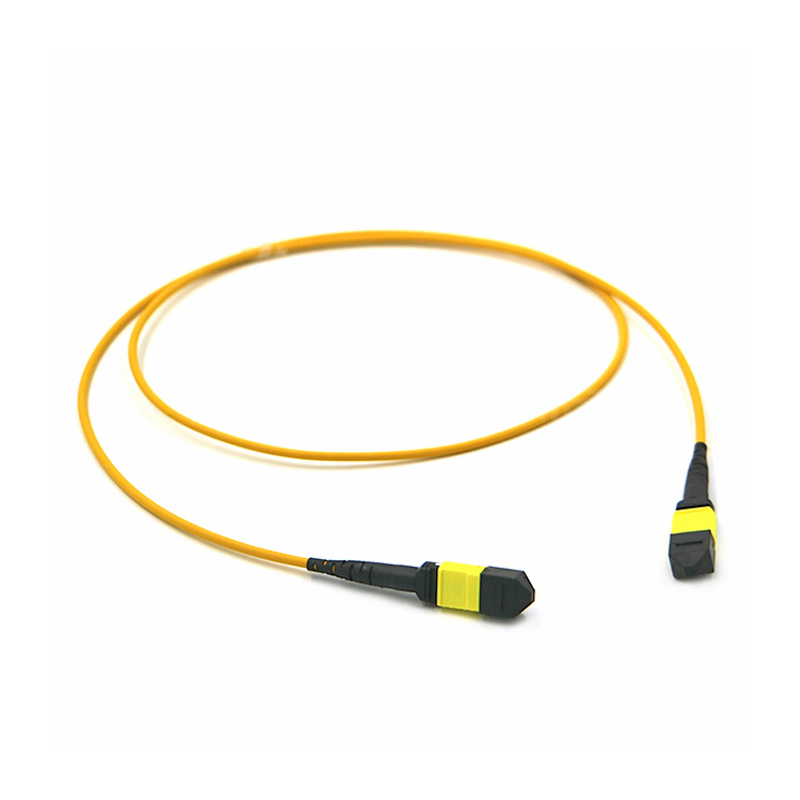

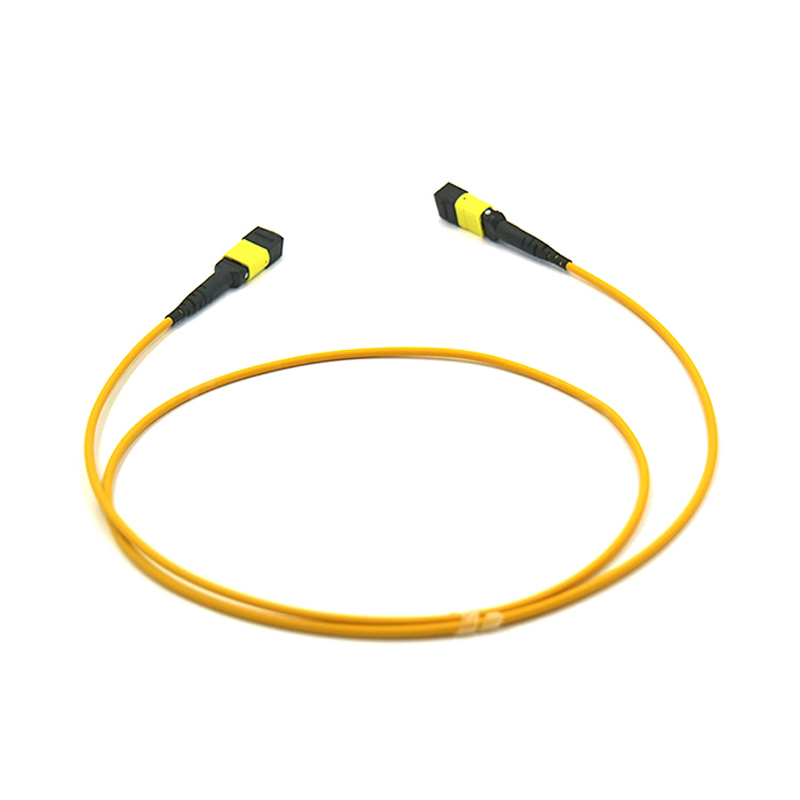

MPO Female to MPO Female Trunk Cable Assembly Single Mode (OS2), Plenum (OFNP), 0.35dB Max, Yellow
FiberMania Cable supplies MTP® breakout cables in single-mode and multimode, employing 12, 24, 48, and 72 fibers. The MTP® fiber cable splits one 12 strand MTP® fiber optic cable into 12 individual SC cables. Fan-out style MTP® cable is available in both male and female styles, varying in length and by the diameter of the fan tube.
MTP/MPO Cable Assemblies, commonly recognized as MTP® Breakout Fiber as well, are primarily utilized for data distribution patch panels, including plenum applications. Explore our MTP/MPO Cable Assemblies, ideal for data distribution.
MPO trunk patch cord can connect multi-core optical fibers and can be used with 12F/24F/48F/72F jumpers.
Key Features
- High bandwidth and low loss: Using precision-polished fiber end faces, insertion loss ≤0.3dB, ensuring 40G/100G/400G high-speed transmission without delay, meeting the demanding needs of data centers.
- Durability and stability: High-strength OM3/OM4 fiber + dust-proof buckle design, anti-bending, anti-interference, plug-in life>500 times, long-term use performance without degradation.
- Plug and play: Pre-terminated design, no need for on-site splicing, fast deployment saves 90% installation time, and greatly reduces labor costs.
- Flexible configuration: Supports 12-core/24-core/48-core customization, optional length 0.5m~50m, compatible with MTP/MPO multiple interfaces.
Specifications
| Connector |
MPO/MTP(Male/Female) |
| Fiber Mode |
SM(OS2) | mm(OM1/OM2/OM3/OM4/OM5) |
| Polishing Type |
PC | APC | PC |
| Insertion Loss |
Typical≤0.30dB Max≤0.75dB
Typical≤0.15dB (Elite) Max≤0.35dB (Elite) |
Typical≤0.50dB Max≤0.25dB
Typical≤0.10dB (Elite) Max≤0.35dB (Elite) |
| Return Loss |
≥50dB ≥55dB(Elite) | ≥60dB ≥65dB(Elite) | ≥35dB |
| Repeatability |
≤0.1dB |
| Durability |
≤0.2dB (1000 times mating) |
| Fiber Count |
8/12/24/48/72/96/144 Fibers |
| Cable Jacket |
PVC/OFNR/OFNP/LSZH |
| RoHS Compliancy Status |
Compliant |
Applications & Features
- Data Distribution Patch Panels
- High-Density Networking Environments
- Plenum Spaces
- Used with MPO/MTP adapter panel
- Active optical network transceiver control
- Optical fiber distribution system
Our Advantages
- Versatile Fiber Options: Available in single-mode and multimode configurations.
- Multiple Fiber Counts: Choose from 12, 24, 48, or 72 fibers to suit your requirements.
- Breakout Design: Each assembly splits one 12-strand MTP® fiber optic cable into 12 individual SC cables, enhancing connectivity options.
- Fan-Out Styles: Available in both male and female configurations, ensuring compatibility with various setups.
- Customizable Lengths: Select from a variety of lengths and tube diameters for optimal installation flexibility.
As our products reliability and stability, we has been highly recognized by many European and American customers for many years. We have helped our customers to solve many technical problems so we have established a close and long-term mutual beneficial cooperation relationship with our customers, exchange of technology and research and development, which enable us to be a professional provider in the MPO trunk patch cord.
Quality Testing Program
IL and RL Testing
Conduct testing on the insertion loss and return loss of cables to verify their reach and ensure stable signal transmission.
3D Interferometer Testing
Evaluate the connectors or ferrules of cables to verify that the apex offset, radius of curvature, and fiber height are within the specified parameters, ensuring a successful connection of fiber optic lines.
End-Face Inspection
Examine the connector end face for any scratches, defects, or contamination to ensure the tips remain clean. This practice enhances communication quality and reliability, thereby contributing to network uptime.
Production Equipment
Certifications
Packaging & Shipping
Frequently Asked Questions
Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.
Q2: Is it possible to customize our brand information on your fiber cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.
Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.
Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable, you may consider stock the bulk cable with us for your urgent order production.
Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under 50 US dollars.
