12 Fibers Multimode OM4 MTP Jumper with 0.35dB Max for High-Speed Data Transmission

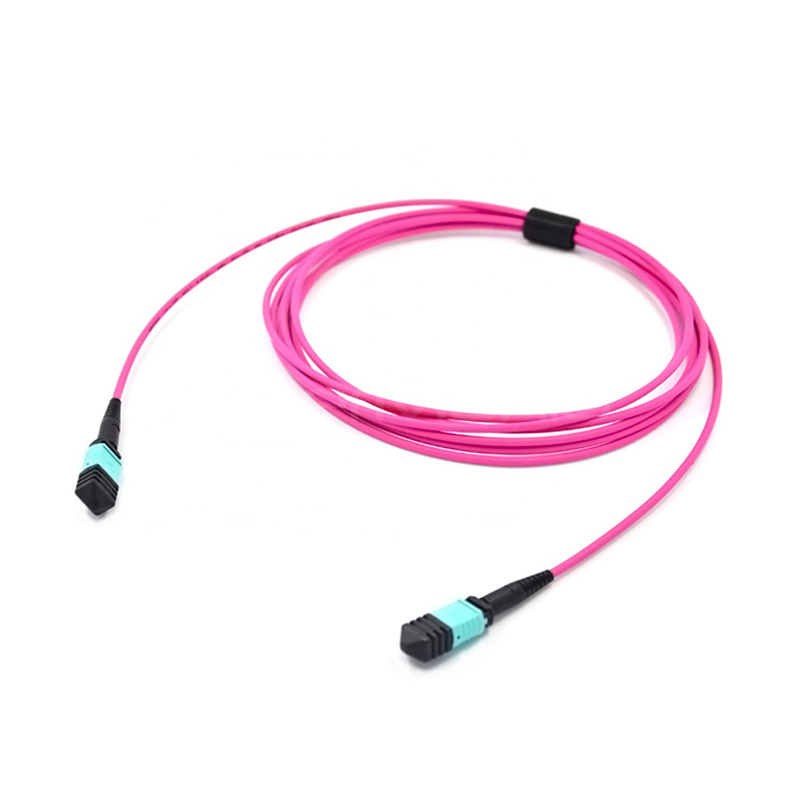

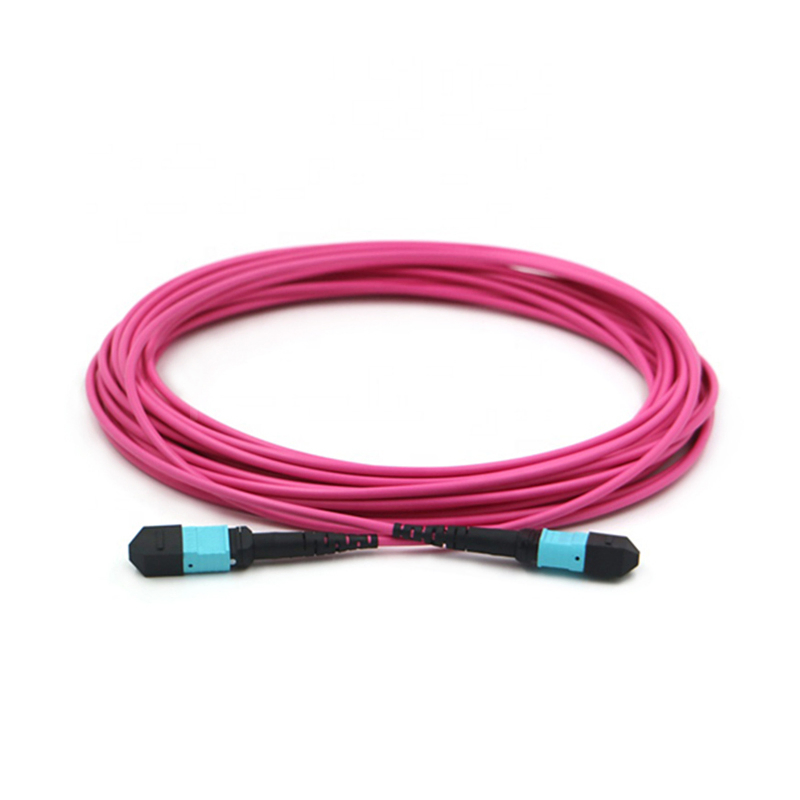

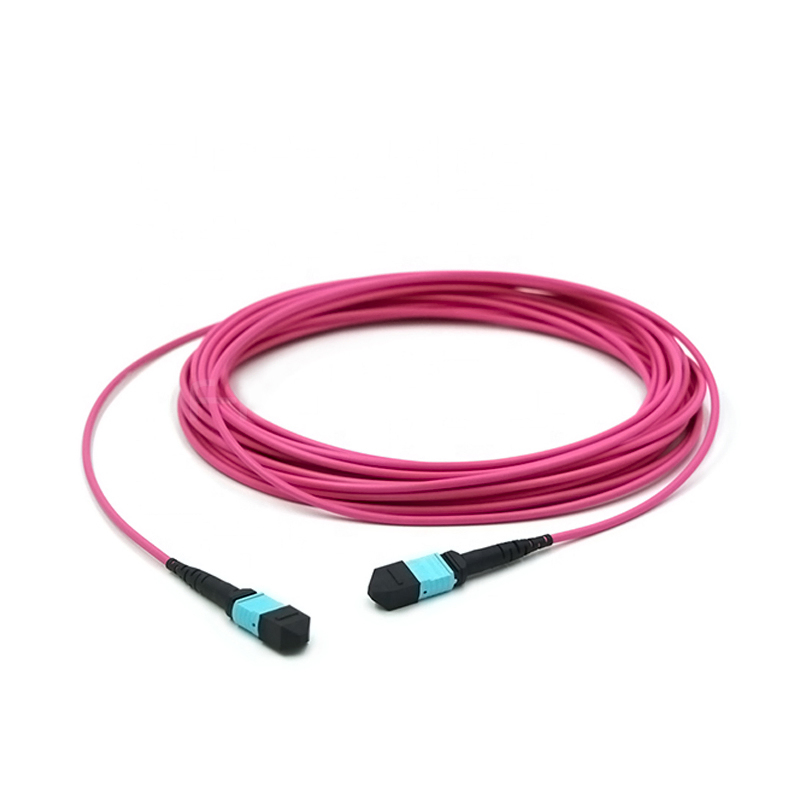

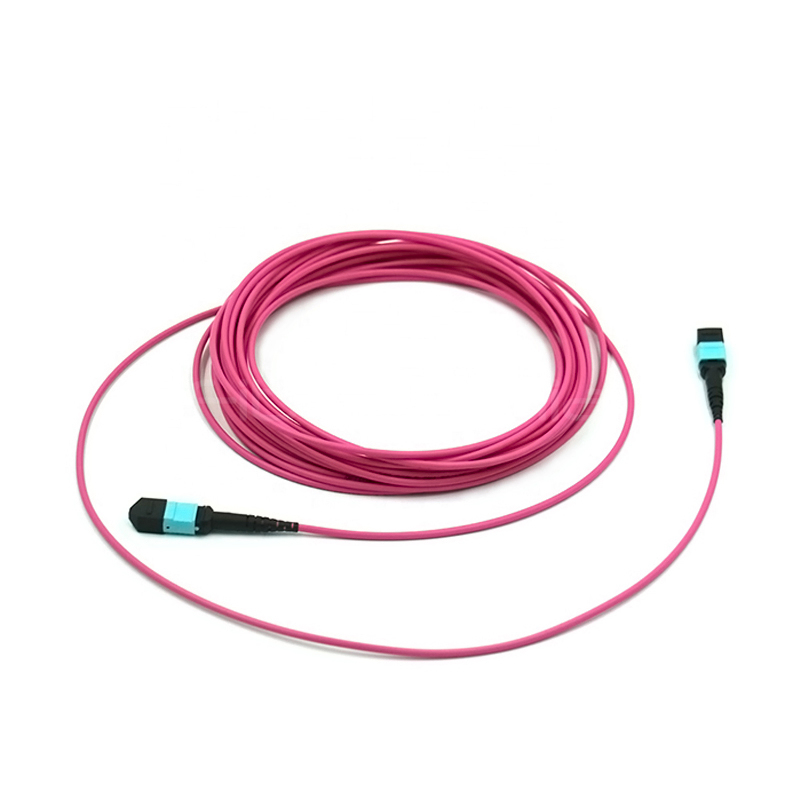

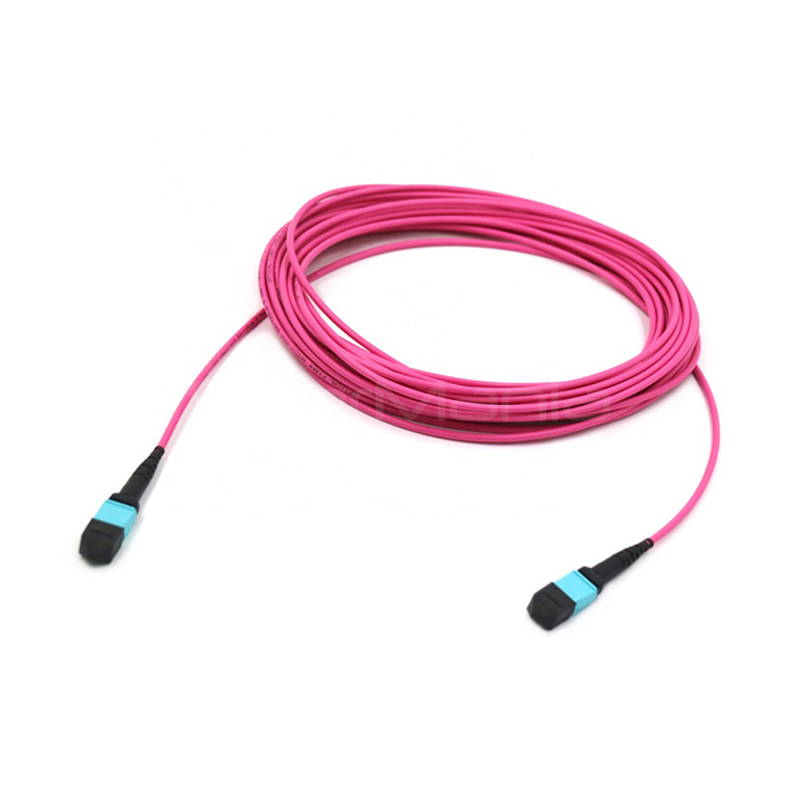

12 Fibers Multimode OM4 MTP Jumper with 0.35dB Max for High-Speed Data Transmission 12 Fibers Multimode OM4 MTP Jumper with 0.35dB Max for High-Speed Data Transmission 12 Fibers Multimode OM4 MTP Jumper with 0.35dB Max for High-Speed Data Transmission 12 Fibers Multimode OM4 MTP Jumper with 0.35dB Max for High-Speed Data Transmission 12 Fibers Multimode OM4 MTP Jumper with 0.35dB Max for High-Speed Data Transmission
Contact Now

12 Fibers Multimode OM4 MTP Jumper with 0.35dB Max for High-Speed Data Transmission

Minimum Order Quantity : 10 Price : 3.2
Certification: RoHS, CE, ISO9001 Document: Product Brochure PDF

Detail Information
Connection Structure: MPO-MPO Material Shape: Round Wire
Allowed Tensile Strength: <100N Core Type: Multicore
Connector A: MPO Female Connector B: MPO Female
Fiber Mode: OM4 50/125μm 40/100G Distance: 150m At 850nm
10G Distance: 400m At 850nm Minimum Bend Radius: 3.0mm
Wavelength: 850/1300nm Attenuation 850nm: ≤2.3dB/km
Attenuation 1300nm: ≤0.6dB/km Installation Tensile Load: 66N
Tensile Strength: 80/240N
Highlight:

12 Fibers MTP Jumper

,

Multimode OM4 MTP Jumper

,

0.35dB Max MTP Jumper

Product Description

MTP (Female) to MTP (Female) Jumper, 12 Fibers, Multimode (OM4), Plenum (OFNP), 0.35dB Max, Type B, Magenta

FiberMania supplies MTP® breakout cables in single-mode and multimode configurations, available with 12, 24, 48, and 72 fibers. These MTP® fiber cables split one 12-strand MTP® fiber optic cable into 12 individual SC cables. Available in both male and female styles with various lengths and fan tube diameters.

12 Fibers Multimode OM4 MTP Jumper with 0.35dB Max for High-Speed Data Transmission 0

MTP/MPO Cable Assemblies, also known as MTP® Breakout Fiber, are designed for data distribution patch panels, including plenum applications.

Key Features
  • High Bandwidth & Low Loss: Precision-polished fiber end faces with insertion loss ≤0.3dB, supporting 40G/100G/400G high-speed transmission.
  • Durability & Stability: High-strength OM3/OM4 fiber with dust-proof buckle design, anti-bending, anti-interference, and plug-in life >500 times.
  • Plug and Play: Pre-terminated design eliminates on-site splicing, saving 90% installation time and reducing labor costs.
  • Flexible Configuration: Supports 12-core/24-core/48-core customization with lengths from 0.5m to 50m, compatible with MTP/MPO interfaces.
Specifications
Connector MPO/MTP (Male/Female)
Fiber Mode SM(OS2) | MM(OM1/OM2/OM3/OM4/OM5)
Polishing Type PC | APC | PC
Insertion Loss Typical≤0.30dB Max≤0.75dB (Standard)
Typical≤0.15dB Max≤0.35dB (Elite)
Return Loss ≥50dB (Standard) ≥55dB (Elite)
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Fiber Count 8/12/24/48/72/96/144 Fibers
Cable Jacket PVC/OFNR/OFNP/LSZH
RoHS Compliancy Compliant
Applications
  • Data Distribution Patch Panels
  • High-Density Networking Environments
  • Plenum Spaces
  • MPO/MTP Adapter Panel Integration
  • Active Optical Network Transceiver Control
  • Optical Fiber Distribution Systems
Quality Testing
12 Fibers Multimode OM4 MTP Jumper with 0.35dB Max for High-Speed Data Transmission 1
  • IL and RL Testing: Verifies insertion loss and return loss for stable signal transmission.
  • 3D Interferometer Testing: Ensures apex offset, radius of curvature, and fiber height meet specifications.
12 Fibers Multimode OM4 MTP Jumper with 0.35dB Max for High-Speed Data Transmission 2 12 Fibers Multimode OM4 MTP Jumper with 0.35dB Max for High-Speed Data Transmission 3
  • End-Face Inspection: Examines connector end faces for scratches or contamination to ensure communication quality and network reliability.
Frequently Asked Questions
Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords are free from defects in material and workmanship for five (5) years from the date of supply. All cables are UL profiled and 100% tested.
Q2: Is it possible to customize our brand information on your fiber cable?
A: Yes, we can print your brand name onto our cable jacket with a minimum order of 1KM total cable length.
Q3: Can you do 3D interferometer test?
A: Yes, we perform 3D testing per customer request with pass rates over 90% (up to 100% when required).
Q4: What is your MOQ of your products?
A: We only have MOQ requirements for special customized cable orders (minimum 1km total length).
Q5: Are free samples available from you?
A: Yes, we provide free samples for customer projects when the total cost is under $50 USD.
