FC APC Fiber Quick Assembled Connector for FTTH

Minimum Order Quantity : 10 Price : US$0.20-0.5
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Brand Name: FiberMania Document: Product Brochure PDF

Detail Information

Highlight:

FC APC fiber connector for FTTH

,

quick assembled fiber optic adapter

,

FTTH fiber connector with warranty

Product Description

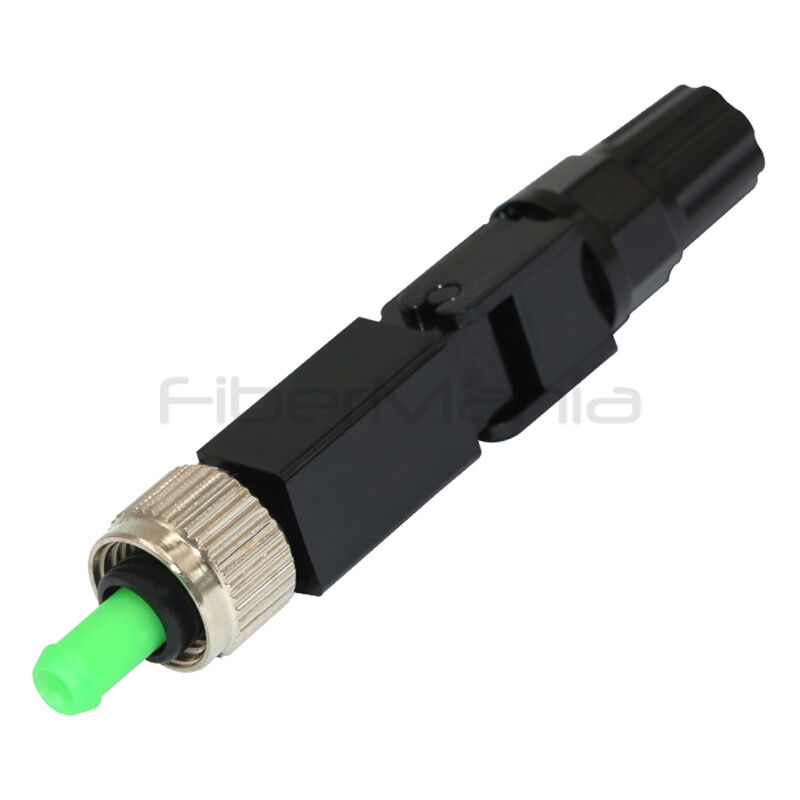

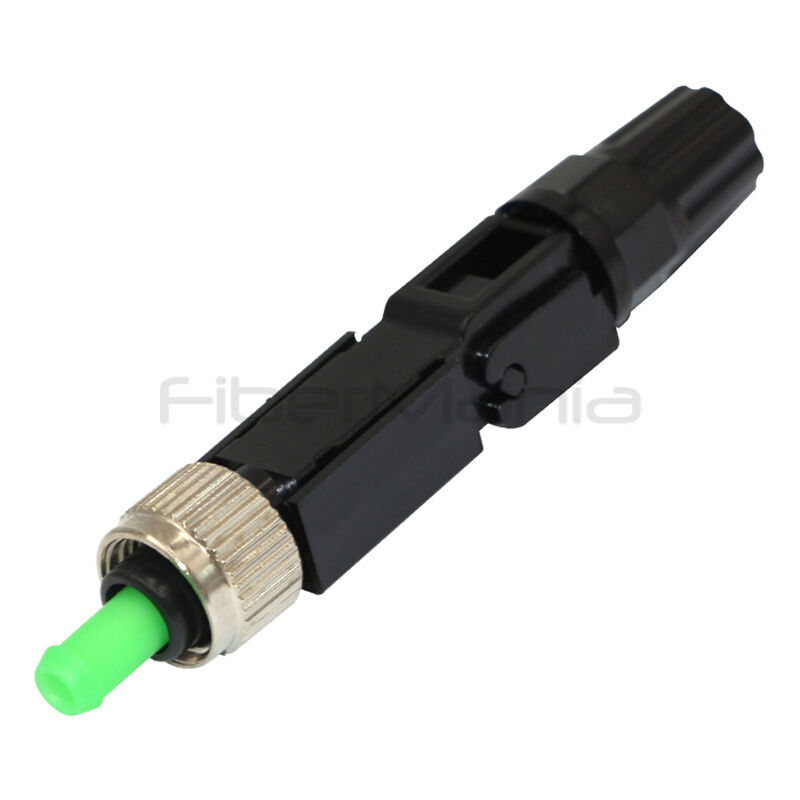

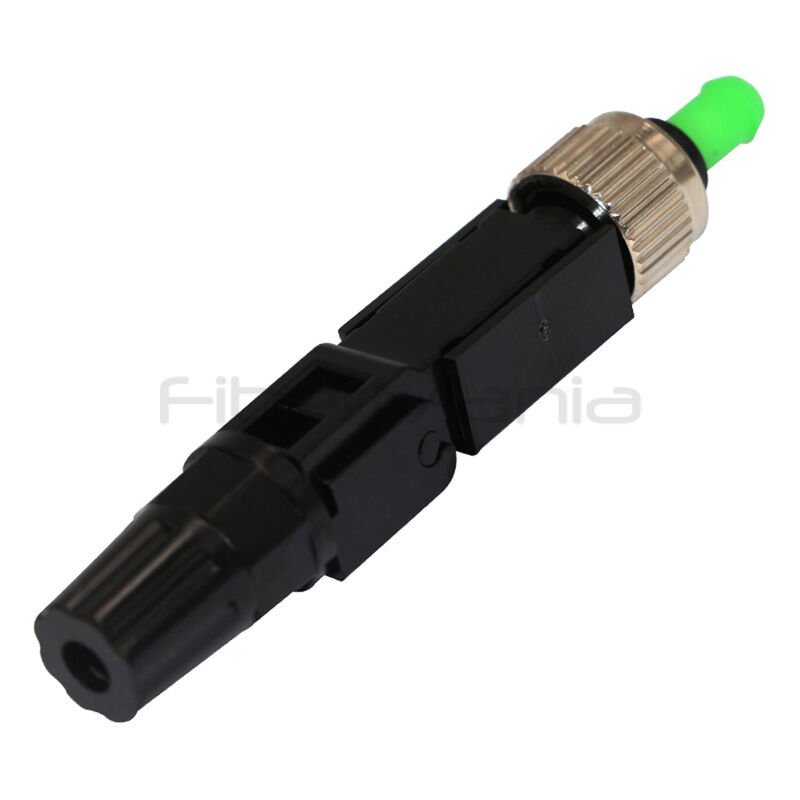

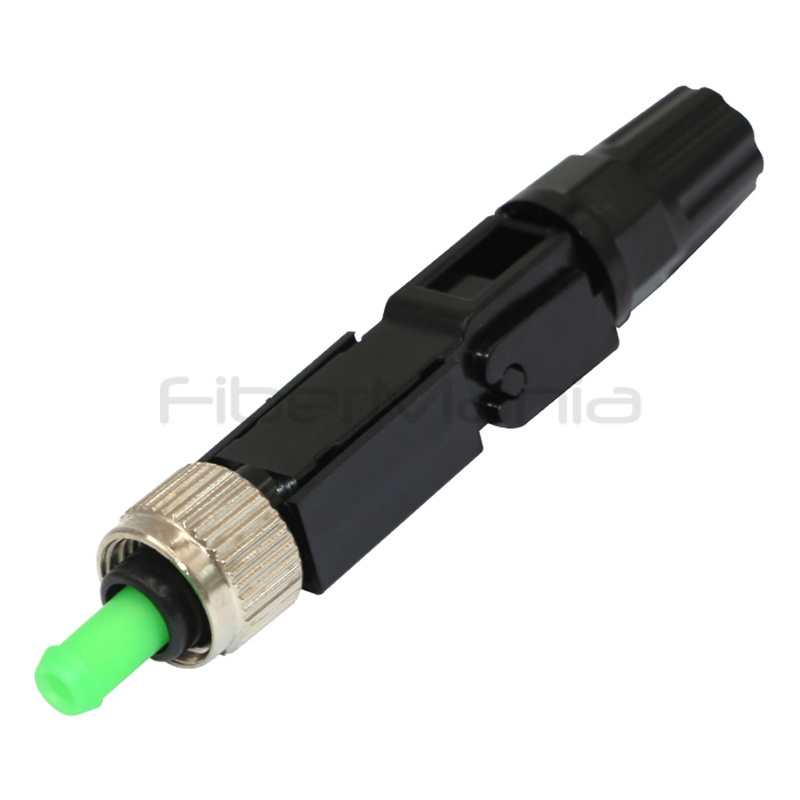

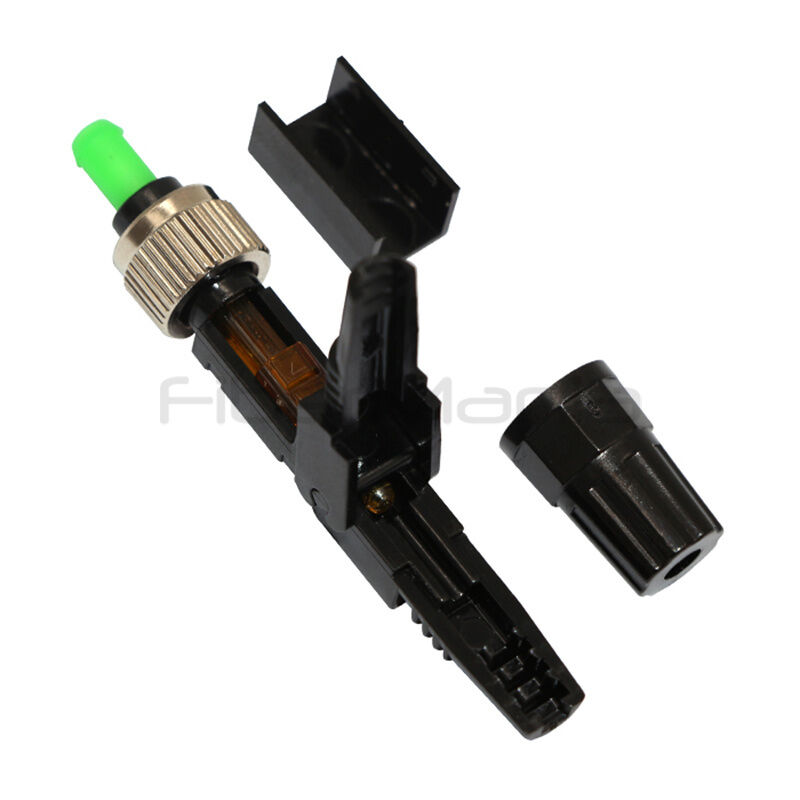

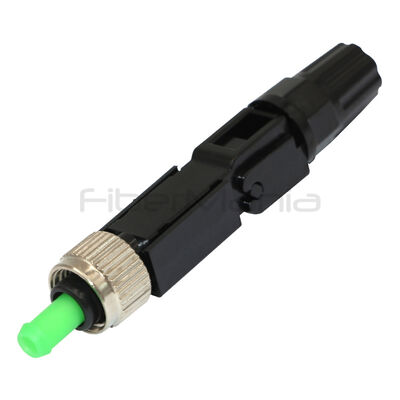

FC APC Fiber Mechanical Quick Fast Connector for FTTH

The FC APC Fiber Mechanical Quick Fast Connector is a precision-engineered solution designed for fast, reliable fiber terminations in FTTH and other optical communication networks. As one of the most essential components in fiber optic systems, connectors play a critical role in ensuring stable optical performance and long-term network reliability. They are widely used in fiber optic patch cables, pigtails, distribution boxes, and various termination points.

At FiberMania, we manufacture a comprehensive range of one-piece fiber optic connectors, offering both standard and specialty types to support diverse installation scenarios. Our product portfolio includes SC, SC/APC, ST, ST/APC, LC, LC/APC, FC, FC/APC, MU, MTRJ, MPO, MTP, MPO/APC, MTP/APC, DIN, D4, SMA, ESCON, and many other connector models. All connectors are available for both single-mode and multimode applications and can be fully customized for OEM/ODM orders.


Features

  • Low insertion loss for stable transmission

  • Corrosion-resistant housing for long-term durability

  • Ultra-low back reflection with APC polishing

  • Compatible with 3.0mm, 2.0mm cable jackets and 900µm buffer fibers

  • One-piece pre-domed ceramic ferrule design for quick and easy assembly

  • Fully compliant with Telcordia GR-326-CORE standards

  • RoHS compliant materials ensuring environmental safety


Applications

  • LAN and WAN networks

  • Telecommunication systems

  • Broadband and CATV

  • FTTx deployment (FTTH/FTTB/FTTP)

  • Fiber optic test and measurement equipment



Specification



Characteristics Single Mode Multimode
Insertion Loss ≤0.20dB ≤0.20dB
Return Loss UPC≥50dB, APC≥60dB ≥35dB
Durability ≤0.2dB typical change ≤0.2dB typical change
Operating Temperature -40 to + 85ºC -40 to + 85ºC
Tensile Strength >10kg >10kg
Ferrule Core Size 125.0+/-0μm, Concentricity:≤1.0μm 125μm, Concentricity:≤3μm
125.3+/-0μm, Concentricity:≤1.0μm 127μm, Concentricity:≤3μm
125.5+/-0μm, Concentricity:≤1.0μm 128μm, Concentricity:≤3μm
126.0+/-0μm, Concentricity:≤1.0μm


Workshop

FC APC Fiber Quick Assembled Connector for FTTH 0

Processing and Testing

FC APC Fiber Quick Assembled Connector for FTTH 1

FC APC Fiber Quick Assembled Connector for FTTH 2

FAQ:

Q1: What is the warranty for FiberMania’s fiber patch cords?
A: FiberMania provides a five (5)-year warranty for all fiber patch cords, guaranteeing they are free from defects in materials and workmanship from the date of supply. All fiber optic bulk cables are UL-listed, and every cable is 100% factory-tested before shipment to ensure consistent performance.


Q2: Can you customize our brand information on your fiber cables?
A: Yes. We can print your brand name, logo, or other required markings directly on the cable jacket. A minimum total cable length of 1 km is required for customized jacket printing.


Q3: Do you offer 3D interferometer testing for connectors?
A: Yes. Upon request, we provide full 3D interferometer testing for connector end-face geometry. Our production process can achieve over a 90% pass rate, and even reach 100% if required for specific high-end applications.


Q4: What is your minimum order quantity (MOQ)?
A: Most standard products do not have a strict MOQ. However, certain customized fiber cable orders require a minimum of 1 km total bulk cable length. You may also choose to stock bulk cable with FiberMania for faster turnaround on urgent orders.


Q5: Do you provide free samples?
A: Yes. We are pleased to offer free samples for customer testing and evaluation as long as the total sample value does not exceed USD 50. For special or customized samples, additional cost may apply.


Q6: Do you accept OEM and ODM orders?
A: Absolutely. FiberMania has specialized in OEM/ODM production since the beginning of our business. We handle all label printing, packaging, bag design, and carton branding with great care. Our engineering team can assist with your current design or even develop new tooling to support your specific project.
