GYTC8S Figure 8 Fiber Optic Cable Self Supporting Armored 36 Core
GYTC8S Figure 8 Fiber Optic Cable Self Supporting Armored 36 Core GYTC8S Figure 8 Fiber Optic Cable Self Supporting Armored 36 Core GYTC8S Figure 8 Fiber Optic Cable Self Supporting Armored 36 Core GYTC8S Figure 8 Fiber Optic Cable Self Supporting Armored 36 Core
Contact Now

GYTC8S Figure 8 Fiber Optic Cable Self Supporting Armored 36 Core

Minimum Order Quantity : 1-2km Price : Negotiable
Packaging Details : Wooden Drum Payment Terms : T/T, Western Union, L/C
Supply Ability : 1000 Pieces
Place of Origin: Shenzhen, China Brand Name: FIBERMANIA
Certification: ISO, UL, CE, RoHS Model Number: GYTC8S-C-F-E (C=Cores, F=Fiber Mode, E=PE Jacket)
Document: Product Brochure PDF

Detail Information
Name: Figure 8 Fiber Optic Cable Fiber Type: Single Mode
Core: 36 Core Cable Structure: Round
Jacket Material: Black Polyethylene (PE) Applications: Base Station
Cable Length: Customized Fiber Brand: Yofc/Ofs/Corning
Operating Temperature: -40°c~+80°c
Highlight:

GYTC8S Figure 8 Fiber Optic Cable

,

Figure 8 Fiber Optic Cable Self Supporting

,

Figure 8 Optical Fiber Cable 36 Core

Product Description

GYTC8S Figure 8 Self-supporting Armored Outdoor Optical Fiber Cable

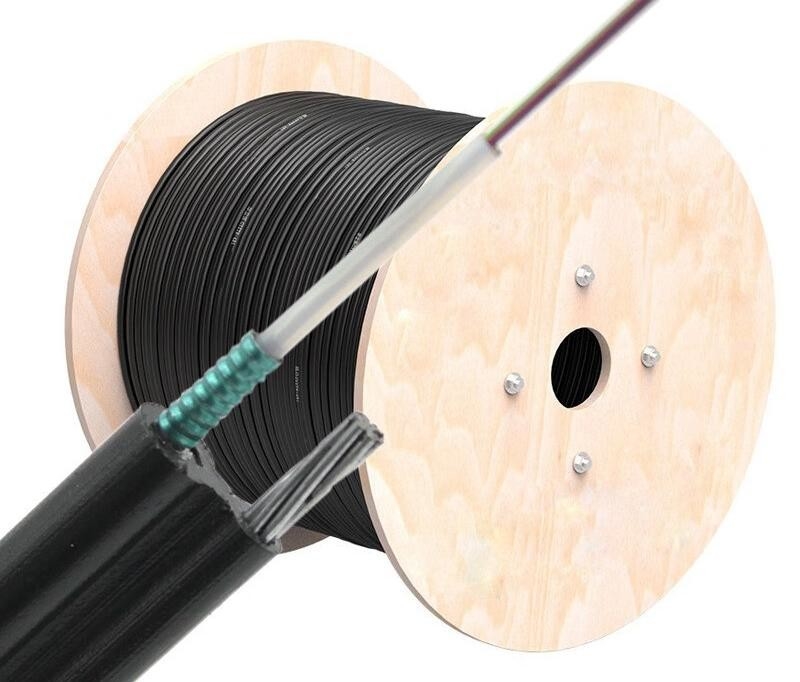

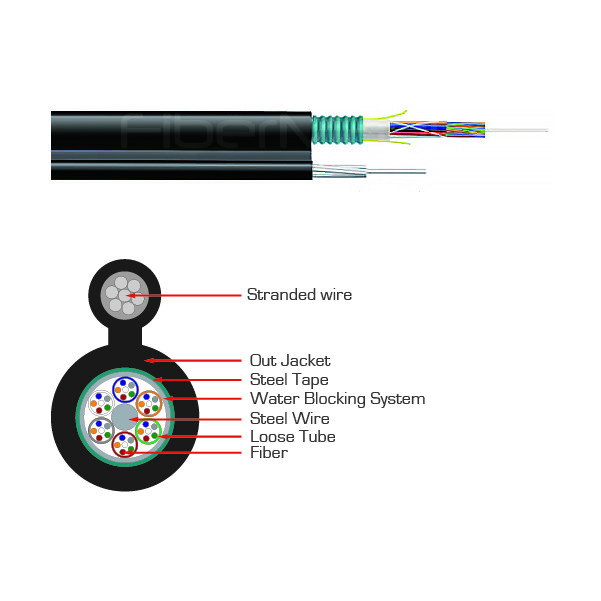

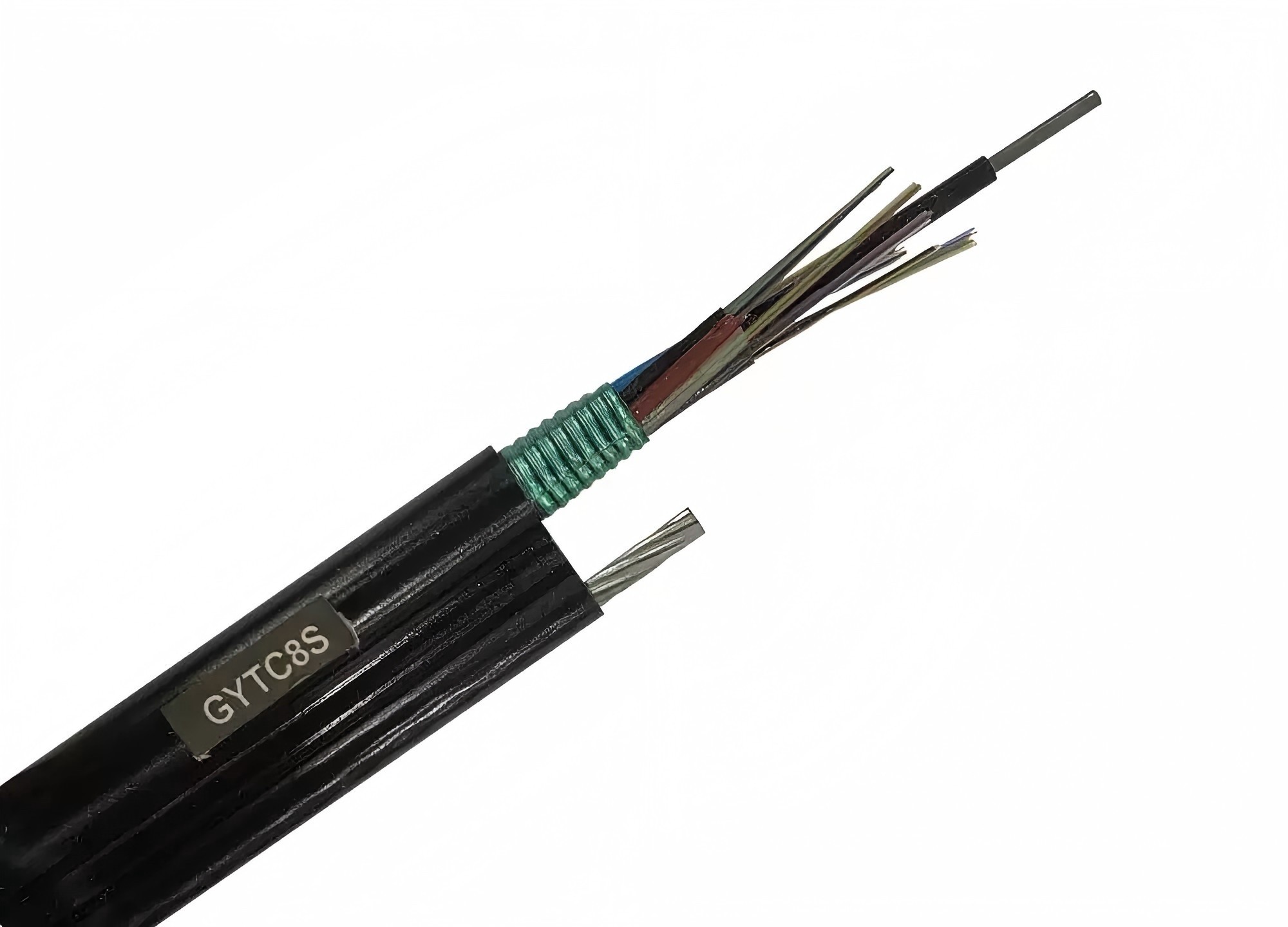

GYTC8S fiber optic cable is a typical outdoor use self-supported fiber cable for aerial applications. It’s also called the figure 8 cable because its structure looks like figure 8. Fiber optic cable GYTC8S, 2~144 fibers, central strength member (steel), jelly-filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, longitudinally covered by copolymer coated steel tape, PE outer sheath, fig 8 type, the suspension line (1.2×3=3.6mm), 7 steel wires stranded together. G652D SM fiber.

GYTC8S Figure 8 Fiber Optic Cable Self Supporting Armored 36 Core 0

Features

1. Good mechanical and temperature performance.

2. High strength loose tube that is hydrolysis resistant.

3. Special tube filling compounds ensure a critical protection of fiber.

4. Crush resistance and flexibility.

5. PE sheath protects the cable from ultraviolet radiation.



Application

1. Adopted to outdoor distribution;

2. Suitable for aerial, pipeline laying method;

3. Long distance and local area network communication.

GYTC8S Figure 8 Fiber Optic Cable Self Supporting Armored 36 Core 1GYTC8S Figure 8 Fiber Optic Cable Self Supporting Armored 36 Core 2GYTC8S Figure 8 Fiber Optic Cable Self Supporting Armored 36 Core 3GYTC8S Figure 8 Fiber Optic Cable Self Supporting Armored 36 Core 4



Specification

No. of fibers 6 12 24 48 72 96 144
No. of tubes 1 1 2 4 6 8 12
fibers per tube 6 6 6 12 12 12 12
Filler Rod 4 3 1 1 0 0 0
Tube diameter (±0.1mm) 2 2 2 2 2 2 2
The thickness of loose tube(±0.05mm) 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Outer diameter (±0.5mm) 5.4X8.6 5.4X8.6 5.4X8.6 5.4X9.8 5.4X10.8 5.4X12.2 5.4X14.9
-15 -15 -15 -16.5 -17.5 -19 -22
The thickness of outer diameter(±0.1mm) 1.6 1.6 1.6 1.6 1.6 1.7 1.7
Loose tube Material PBT Color Standard spectrum
Water blocking system Material Water blocking tape / Filling gel
Armor Material Corrugated steel tape
Central strength member Material Steel wire Size 1.4mm(6-48)
2.0mm(72-144)
Mental strength member Material Stranded steel wire Size 1.0mm*7
Gallus Material PE Size(h*w) 2.0*1.5mm
Outsheath Material PE Color Black

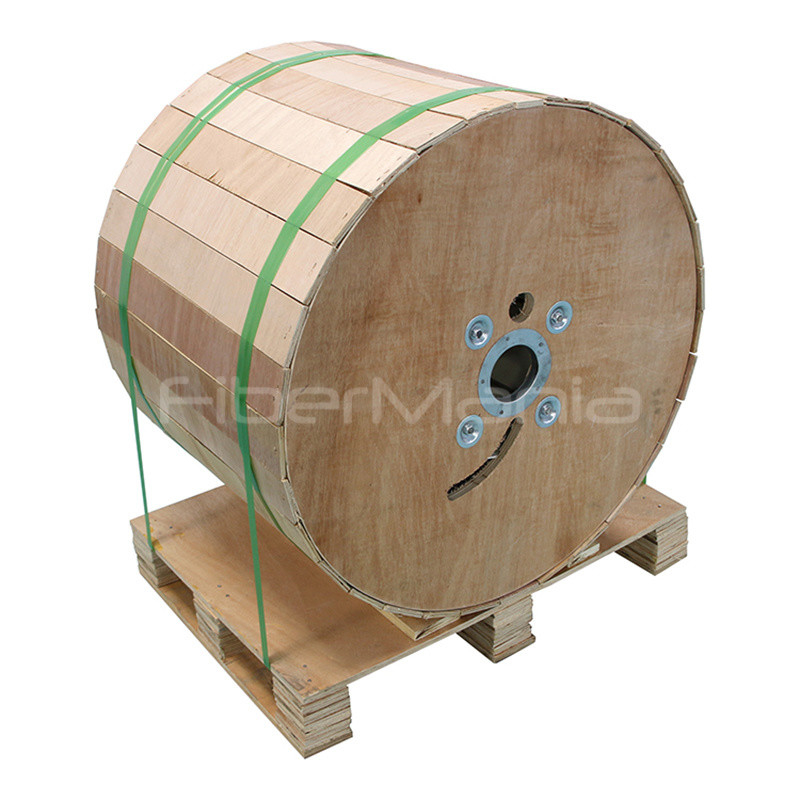

Packaging & Shipping

GYTC8S Figure 8 Fiber Optic Cable Self Supporting Armored 36 Core 5GYTC8S Figure 8 Fiber Optic Cable Self Supporting Armored 36 Core 6

FAQ

Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of
five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.

Q2: Is it possible to customize our brand information on your fiber cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.

Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.

Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable, you may
consider stock the bulk cable with us for your urgent order production.

Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under
50 US dollars.

Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag and
carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even can open
the new tooling for your specific project.
