GYXTC8S Figure 8 Central Loose Tube Fiber Optic Cable 72 Core Single Mode
GYXTC8S Figure 8 Central Loose Tube Fiber Optic Cable 72 Core Single Mode GYXTC8S Figure 8 Central Loose Tube Fiber Optic Cable 72 Core Single Mode GYXTC8S Figure 8 Central Loose Tube Fiber Optic Cable 72 Core Single Mode GYXTC8S Figure 8 Central Loose Tube Fiber Optic Cable 72 Core Single Mode
Contact Now

GYXTC8S Figure 8 Central Loose Tube Fiber Optic Cable 72 Core Single Mode

Minimum Order Quantity : 1-2km Price : Negotiable
Packaging Details : Wooden Drum Payment Terms : T/T, Western Union, L/C
Supply Ability : 1000 Pieces
Place of Origin: Shenzhen, China Brand Name: FIBERMANIA
Certification: ISO, UL, CE, RoHS Model Number: GYXTC8SC-C-F-E (C=Cores, F=Fiber Mode, E=PE Jacket)
Document: Product Brochure PDF

Detail Information
Name: GYXTC8S Fiber Optic Cable Core: 72 Core
Fiber Type: Single Mode Cable Structure: Round
Jacket Material: Black Polyethylene (PE) Applications: Base Station
Cable Length: Customized Fiber Brand: Yofc/Ofs/Corning
Operating Temperature: -40°c~+80°c
Highlight:

GYTC8S Fiber Optic Cable

,

Central Loose Tube Fiber Optic Cable

,

72 Core Fiber Optic Cable Single Mode

Product Description

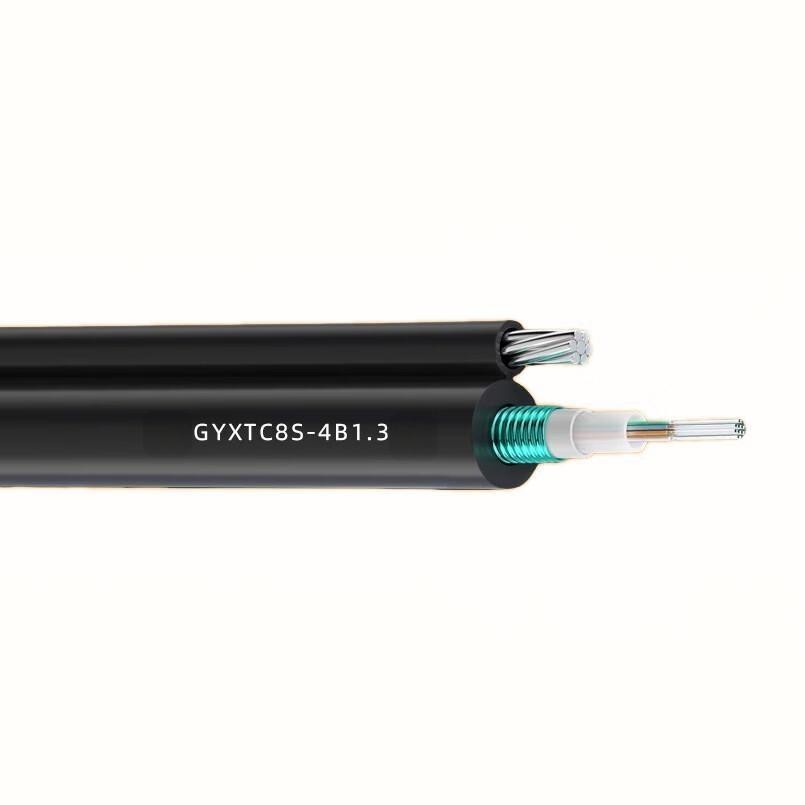

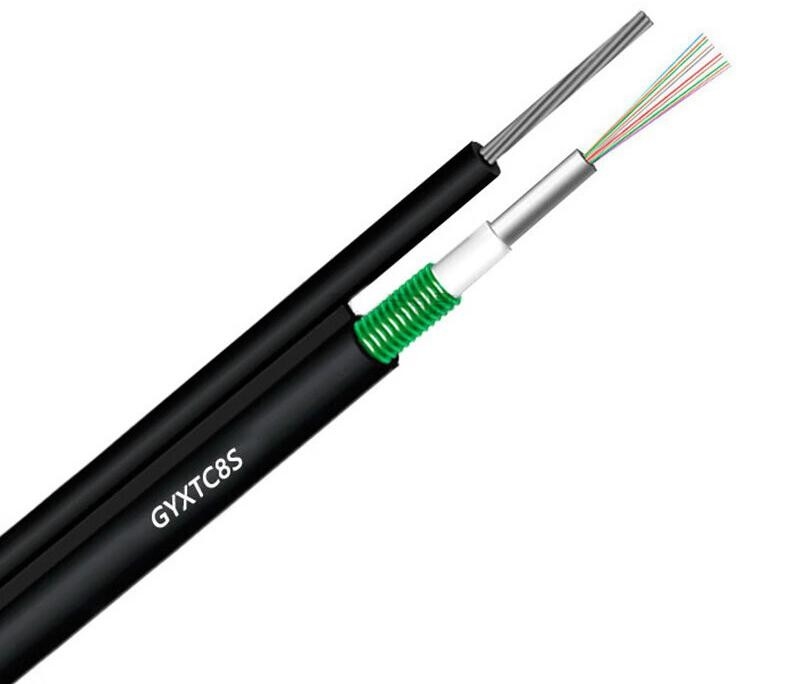

GYXTC8S Figure 8 Central Loose Tube Armored Outdoor Optical Fiber Cable

GYXTC8S fiber optic cable is a figure 8 structure cable suitable for installation in the aerial environment for long haul communications.

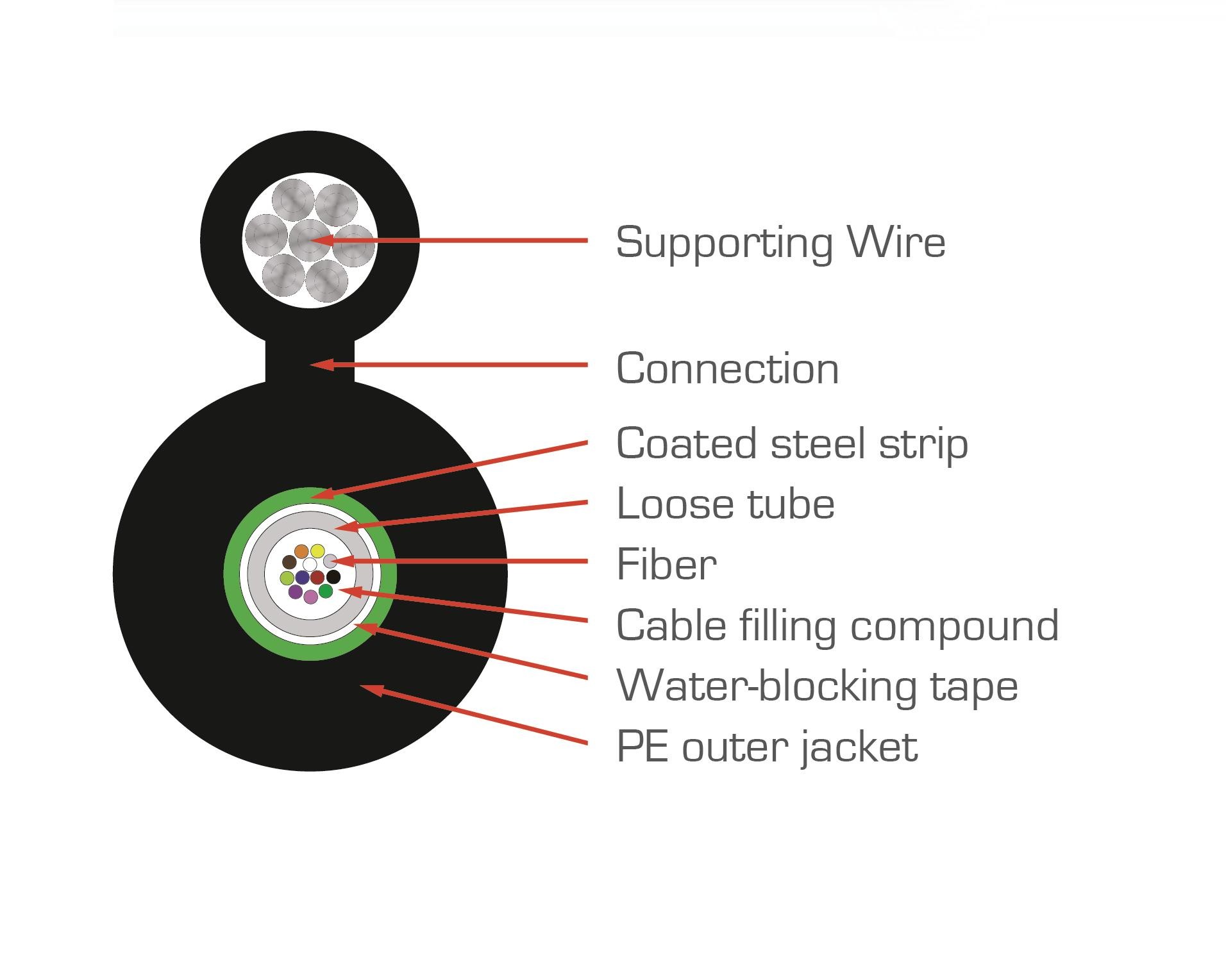

GYXTC8S features the centrally situated loose tube with good excess length and minimize the influence of lateral crush. The water resistant tape provides watertight property. Corrugated steel tape armor and the PE outer sheath of GYXTC8S fiber optic cable provide crush resistance and gunshot resistance. The cross-section shows figure 8. Stranded wires as self-supporting member providing excellent strain performance and convenient installation for this GYXTC8S fiber cable.

GYXTC8S Figure 8 Central Loose Tube Fiber Optic Cable 72 Core Single Mode 0

Features of aerial fiber optic cable

1. The high tensile strength of stranded wires meet the requirement of self-supporting

2. Good mechanical and temperature performance

3. High strength loose tube that is hydrolysis resistant

4. Special tube filling compounds ensure a critical protection of fiber

5. The following measures are taken to ensure the cable is watertight

6. Loose tube filling compound

7. 100% cable core filling

8. Steel tape moisture barrier



Application of aerial fiber optic cable

1. Adopted to outdoor distribution;

2. Suitable for aerial, pipeline laying method;

3. Long distance and local area network communication.

GYXTC8S Figure 8 Central Loose Tube Fiber Optic Cable 72 Core Single Mode 1GYXTC8S Figure 8 Central Loose Tube Fiber Optic Cable 72 Core Single Mode 2GYXTC8S Figure 8 Central Loose Tube Fiber Optic Cable 72 Core Single Mode 3GYXTC8S Figure 8 Central Loose Tube Fiber Optic Cable 72 Core Single Mode 4



Specification of aerial fiber optic cable

No. of fibers 6 12 24 48 72 96 144
No. of tubes 1 1 2 4 6 8 12
fibers per tube 6 6 6 12 12 12 12
Filler Rod 4 3 1 1 0 0 0
Tube diameter (±0.1mm) 2 2 2 2 2 2 2
The thickness of loose tube(±0.05mm) 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Outer diameter (±0.5mm) 5.4X8.6 5.4X8.6 5.4X8.6 5.4X9.8 5.4X10.8 5.4X12.2 5.4X14.9
-15 -15 -15 -16.5 -17.5 -19 -22
The thickness of outer diameter(±0.1mm) 1.6 1.6 1.6 1.6 1.6 1.7 1.7
Loose tube Material PBT Color Standard spectrum
Water blocking system Material Water blocking tape / Filling gel
Armor Material Corrugated steel tape
Central strength member Material Steel wire Size 1.4mm(6-48)
2.0mm(72-144)
Mental strength member Material Stranded steel wire Size 1.0mm*7
Gallus Material PE Size(h*w) 2.0*1.5mm
Outsheath Material PE Color Black

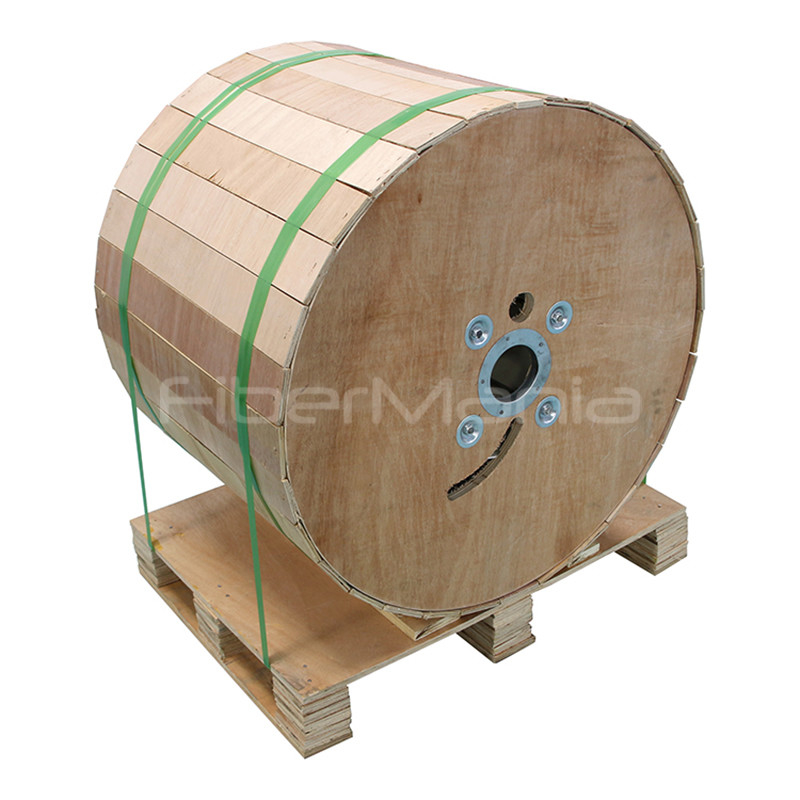

Packaging & Shipping

GYXTC8S Figure 8 Central Loose Tube Fiber Optic Cable 72 Core Single Mode 5GYXTC8S Figure 8 Central Loose Tube Fiber Optic Cable 72 Core Single Mode 6

FAQ

Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of
five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.

Q2: Is it possible to customize our brand information on your fiber cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.

Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.

Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable, you may
consider stock the bulk cable with us for your urgent order production.

Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under
50 US dollars.

Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag and
carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even can open
the new tooling for your specific project.
