ADSS Self-Supporting Outdoor Aerial All Dielectric Armored Optical Fiber Cable with Round Cable Structure and Customized Length

Contact Now

ADSS Self-Supporting Outdoor Aerial All Dielectric Armored Optical Fiber Cable with Round Cable Structure and Customized Length

Minimum Order Quantity :	1-2km	Price :	Negotiable
Packaging Details :	Wooden Drum	Payment Terms :	T/T, Western Union, L/C
Supply Ability :	1000 Pieces

Place of Origin:	Shenzhen, China	Brand Name:	FIBERMANIA
Certification:	ISO, UL, CE, RoHS	Model Number:	GYXTC8SC-C-F-E (C=Cores, F=Fiber Mode, E=PE Jacket)
Document:	Product Brochure PDF

Detail Information
Name:	ADSS Fiber Optic Cable	Core:	72 Core Or Customized
Fiber Type:	Single Mode	Cable Structure:	Round
Jacket Material:	Black Polyethylene (PE)	Applications:	Aerial, Pipeline Laying
Cable Length:	Customized	Fiber Brand:	Yofc/Ofs/Corning
Operating Temperature:	-40°c~+80°c
Highlight:	Round Structure Optical Fiber Cable , Outdoor Aerial Optical Fiber Cable , Outdoor Aerial Armored Optical Fiber Cable

Product Description

ADSS Self-Supporting Outdoor Aerial All Dielectric Armored Optical Fiber Cable

ADSS (All-Dielectric Self-Supporting) Cable is a type of fiber optic cable designed for aerial installation that requires no metallic support wires. It is constructed entirely of dielectric (non-conductive) materials, making it resistant to electromagnetic interference (EMI) and lightning strikes. The cable is engineered with sufficient tensile strength to support its own weight over long spans between utility poles or transmission towers without the need for a separate messenger wire.

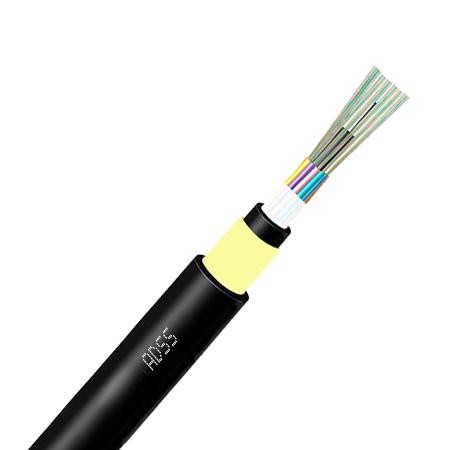

ADSS Self-Supporting Outdoor Aerial All Dielectric Armored Optical Fiber Cable with Round Cable Structure and Customized Length 0

Features of aerial fiber optic cable

1. Steel-wire parallel member, filler protect tube fiber steel tape armored
2. Excellent mechanical and environmental performance
3. Compact structure, lightweight
4. Can be installed conveniently and operated simply
5. Can be installed without power supply
6. 2~288 fibers Customized
7. Large span, with a maximum span exceeding 1000 meters

Application of aerial fiber optic cable

1. Adopted to outdoor distribution;

2. Suitable for aerial, pipeline laying method;

3. Long distance and local area network communication.

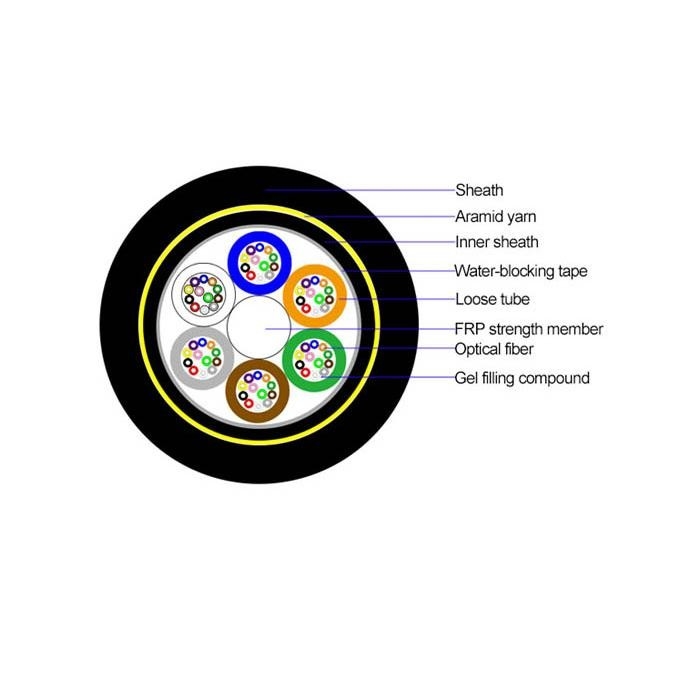

ADSS Self-Supporting Outdoor Aerial All Dielectric Armored Optical Fiber Cable with Round Cable Structure and Customized Length 1

Specification of aerial fiber optic cable

No. of fibers	6	12	24	48	72	96	144
No. of tubes	1	1	2	4	6	8	12
fibers per tube	6	6	6	12	12	12	12
Filler Rod	4	3	1	1	0	0	0
Tube diameter (±0.1mm)	2	2	2	2	2	2	2
The thickness of loose tube(±0.05mm)	0.3	0.3	0.3	0.3	0.3	0.3	0.3

Outer diameter (±0.5mm)	5.4X8.6	5.4X8.6	5.4X8.6	5.4X9.8	5.4X10.8	5.4X12.2	5.4X14.9
	-15	-15	-15	-16.5	-17.5	-19	-22
The thickness of outer diameter(±0.1mm)	1.6	1.6	1.6	1.6	1.6	1.7	1.7

Loose tube	Material	PBT			Color	Standard spectrum
Water blocking system	Material	Water blocking tape / Filling gel
Armor	Material	Corrugated steel tape
Central strength member	Material	Steel wire			Size	1.4mm(6-48)
						2.0mm(72-144)
Mental strength member	Material	Stranded steel wire			Size	1.0mm*7
Gallus	Material	PE			Size(h*w)	2.0*1.5mm

Outsheath	Material	PE			Color	Black

Packaging & Shipping

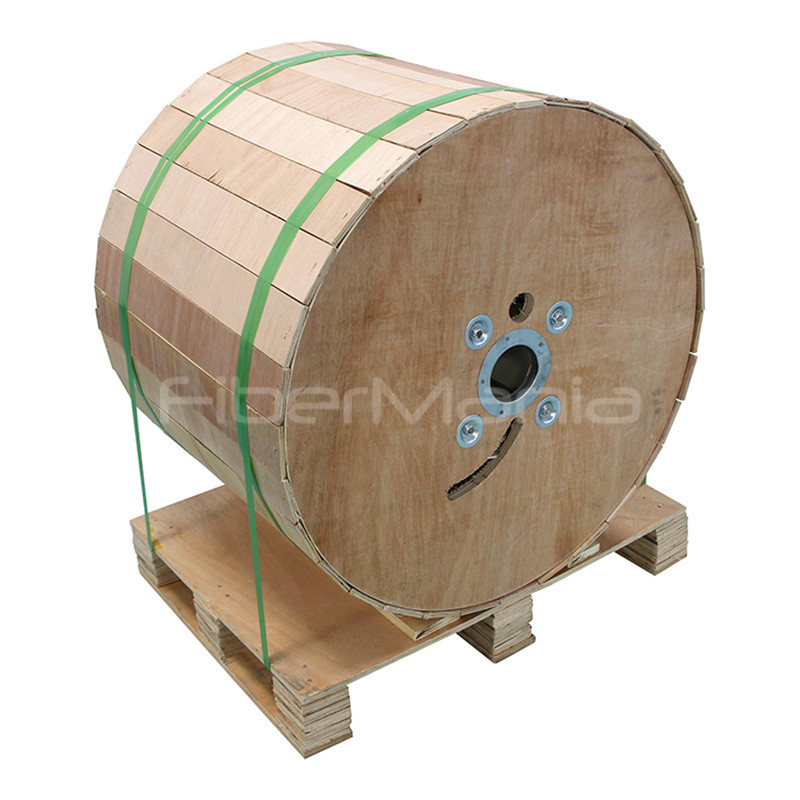

ADSS Self-Supporting Outdoor Aerial All Dielectric Armored Optical Fiber Cable with Round Cable Structure and Customized Length 5

FAQ

Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of
five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.

Q2: Is it possible to customize our brand information on your fiber cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.

Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.

Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable, you may
consider stock the bulk cable with us for your urgent order production.

Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under
50 US dollars.

Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag and
carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even can open
the new tooling for your specific project.
