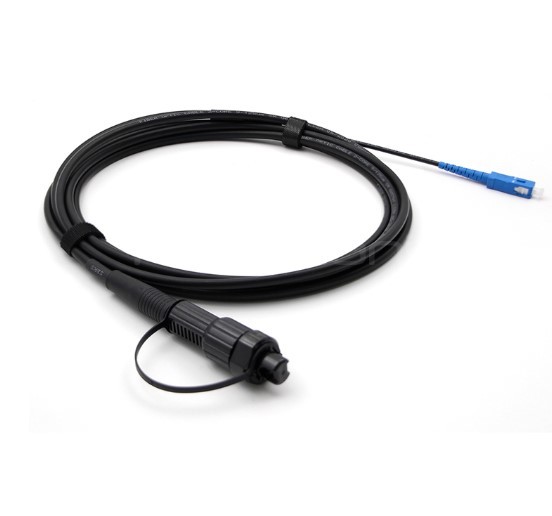

5M MINI SC/APC to SC/UPC Simplex Outdoor Fiber Patch Cord, OS2 9/125, LSZH Jacket

Product Description

The MISASU-SM014LBK05 is a 5-meter MINI SC/APC to SC/UPC simplex fiber patch cord designed for rugged outdoor fiber optic applications. Built with OS2 9/125 single-mode fiber, it ensures low insertion loss (≤0.3 dB) and consistent optical performance even across extended deployments.

Equipped with IP67-rated waterproof MINI SC/APC and SC/UPC connectors, this cable withstands dust, moisture, and extreme conditions, making it suitable for FTTA, LTE, WiMax, telecom, broadcast, and military networks. Its TPU/LSZH jacket provides flame resistance, mechanical protection, and tensile strength ≥180 N for secure, long-term reliability.

The cable supports repeated mating cycles (500+) with stable repeatability (≤0.2 dB) and operates within a temperature range of -40 °C to +70 °C, ensuring durable performance in harsh outdoor environments. Easy plug-and-play connectivity reduces splicing needs, speeding up installation and lowering maintenance costs.

Key Specifications

• Connector Types: MINI SC/APC to SC/UPC

• Fiber Type: OS2 9/125 µm single-mode

• Configuration: Simplex

• Length: 5 meters (custom lengths available)

• Insertion Loss: ≤0.3 dB

• Repeatability: ≤0.2 dB

• Mechanical Durability: 500 mating cycles

• Tensile Strength: ≥180 N

• Jacket Material: TPU / LSZH, UL94V-0 flame-retardant

• Temperature Range: -40 °C to +70 °C

• Protection Rating: IP67 waterproof

Features & Benefits

• Compact MINI SC to SC hybrid design for flexible outdoor connectivity

• Waterproof IP67 connectors protect against dust, dirt, and moisture

• Low-loss optical performance ensures stable and long-distance transmission

• Rugged TPU/LSZH jacket for flame resistance and durability

• High mechanical strength for reliable field use in harsh environments

• Reduces splicing, enabling faster and safer installation

Applications

• FTTA (Fiber to the Antenna)

• LTE & WiMax networks

• Outdoor telecom systems

• Broadcast and military communications

• Harsh-environment optical links
